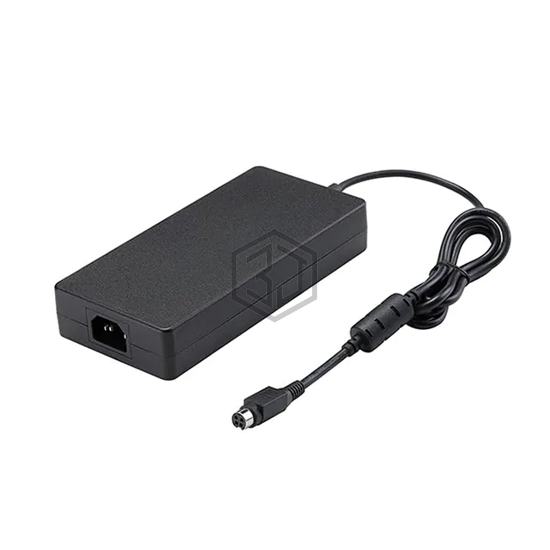

AC/DC DESKTOP ADAPTER 19.5V 230W
FSP230-AJAN3 is a AC DC Desktop, Wall Adapters manufactured by FSP Technology Inc.. AC/DC DESKTOP ADAPTER 19.5V 230W. Key specifications: operating temperature 0°C ~ 70°C, voltage - input 90 ~ 264 VAC, current - output (max) 11.79A, size / dimension 6.97" L x 3.37" W x 1.27" H (177.0mm x 85.6mm x 32.2mm).
In Stock: 76
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | International |
| Form | Desktop (Class I) |
| Input Type | Cord (Sold Separately) |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 19.5V |
| Current - Output (Max) | 11.79A |
| Power (Watts) | 230 W |
| No Load Power Consumption | 500mW (Max) |
| Polarization | - |
| Applications | ITE (Commercial) |
| Efficiency | Level VI, CoC Tier 2 |
| Operating Temperature | 0°C ~ 70°C |
| Output Connector | Power DIN, 4 Pin |
| Cord Length | 59" (1.50m) |
| Input Connector | IEC 320-C14 |
| Features | - |
| Size / Dimension | 6.97" L x 3.37" W x 1.27" H (177.0mm x 85.6mm x 32.2mm) |
| Approval Agency | CB, CE, CCC, cULus, FCC, GS, TUV, VCCI |
| Standard Number | 60950-1; 62368-1 |
