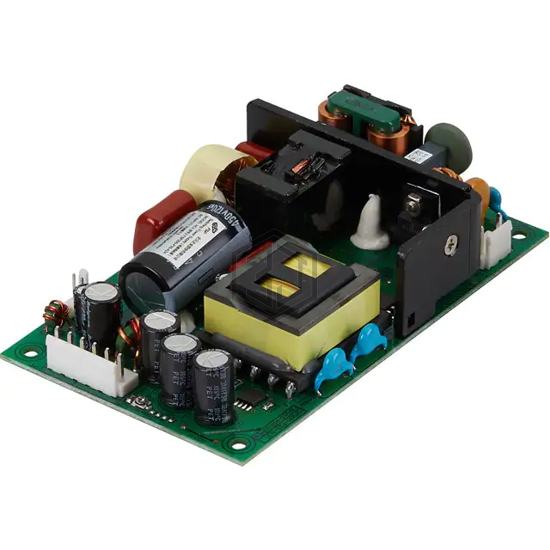

AC/DC CONVERTER 24V 150W
FSP200-P35-A24 is a AC DC Converters manufactured by FSP Technology Inc.. AC/DC CONVERTER 24V 150W. Key specifications: mounting type Chassis Mount, operating temperature -20°C ~ 70°C (With Derating), voltage - input 90 ~ 264 VAC, size / dimension 5.00" L x 3.00" W x 1.10" H (127.0mm x 76.2mm x 28.0mm).
In Stock: 381
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 6.25 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 150W (200W Forced Air) |
| Applications | ITE (Commercial) |
| Voltage - Isolation | - |
| Efficiency | 91% |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Features | PFC, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 5.00" L x 3.00" W x 1.10" H (127.0mm x 76.2mm x 28.0mm) |
| Approval Agency | CB, CE, cURus, CSA, FCC, UL, VCCI |
| Standard Number | 60950-1; 62368-1 |
