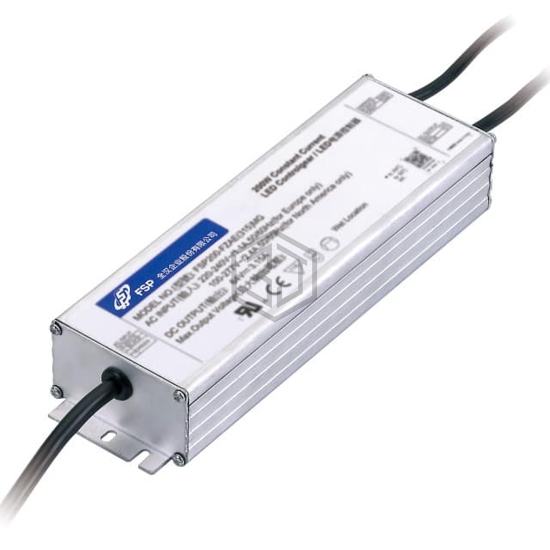

LED DRIVER CC AC/DC 105-215V 700
FSP150-SZAE(105)DG is a LED Drivers manufactured by FSP Technology Inc.. LED DRIVER CC AC/DC 105-215V 700. Key specifications: operating temperature -40°C ~ 50°C (With Derating), voltage - output 105 ~ 215V, current - output (max) 1.05A, size / dimension 8.62" L x 2.68" W x 1.53" H (219.0mm x 68.0mm x 38.8mm).
In Stock: 4,552
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 108VAC |
| Voltage - Input (Max) | 305VAC |
| Voltage - Output | 105 ~ 215V |
| Current - Output (Max) | 1.05A |
| Power (Watts) | 150 W |
| Voltage - Isolation | 500 V |
| Dimming | Analog, PWM |
| Features | OTP, OVP, SCP |
| Ratings | IP67 |
| Operating Temperature | -40°C ~ 50°C (With Derating) |
| Efficiency | 91.5% |
| Termination Style | Wire Leads |
| Size / Dimension | 8.62" L x 2.68" W x 1.53" H (219.0mm x 68.0mm x 38.8mm) |
| Approval Agency | CE, cULus |
| Standard Number | - |
