LED DRIVER CC+CV AC/DC 16-24V 50

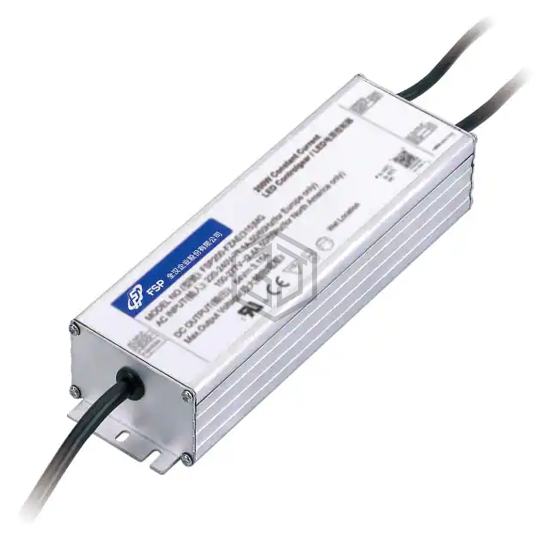

FSP120-FZAE1(500)MG is a LED Drivers manufactured by FSP Technology Inc.. LED DRIVER CC+CV AC/DC 16-24V 50. Key specifications: operating temperature -40°C ~ 70°C (With Derating), voltage - output 16 ~ 24V, current - output (max) 5A, size / dimension 7.68" L x 2.68" W x 1.53" H (195.0mm x 68.0mm x 38.8mm).
In Stock: 1,792
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 305VAC |
| Voltage - Output | 16 ~ 24V |
| Current - Output (Max) | 5A |
| Power (Watts) | 120 W |
| Voltage - Isolation | 500 V |
| Dimming | Analog, PWM |
| Features | OTP, OVP, SCP |
| Ratings | IP65, IP67 |
| Operating Temperature | -40°C ~ 70°C (With Derating) |
| Efficiency | 93% |
| Termination Style | Wire Leads |
| Size / Dimension | 7.68" L x 2.68" W x 1.53" H (195.0mm x 68.0mm x 38.8mm) |
| Approval Agency | CE, cULus |
| Standard Number | - |
Submit your RFQ for FSP120-FZAE1(500)MG and get a quote within 24 hours.
