AC/DC DESKTOP ADAPTER 19V 65W

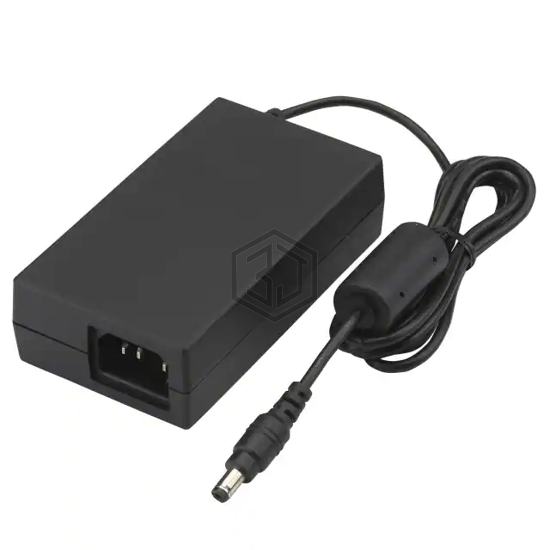

FSP065M-DBA is a AC DC Desktop, Wall Adapters manufactured by FSP Technology Inc.. AC/DC DESKTOP ADAPTER 19V 65W. Key specifications: operating temperature 0°C ~ 40°C, voltage - input 90 ~ 264 VAC, current - output (max) 3.43A, size / dimension 5.08" L x 2.29" W x 1.24" H (129.1mm x 58.1mm x 31.5mm).
In Stock: 49
| Attribute | Value |
|---|---|
| Product Status | Active |
| Region Utilized | International |
| Form | Desktop (Class I) |
| Input Type | Cord (Sold Separately) |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output | 19V |
| Current - Output (Max) | 3.43A |
| Power (Watts) | 65 W |
| No Load Power Consumption | 210mW (Max) |
| Polarization | Negative Center |
| Applications | Medical |
| Efficiency | Level VI |
| Operating Temperature | 0°C ~ 40°C |
| Output Connector | Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 11.0mm |
| Cord Length | 47.2" (1.20m) |
| Input Connector | IEC 320-C14 |
| Features | - |
| Size / Dimension | 5.08" L x 2.29" W x 1.24" H (129.1mm x 58.1mm x 31.5mm) |
| Approval Agency | CE, cULus, FCC, TUV, VCCI |
| Standard Number | 60601-1 |
Submit your RFQ for FSP065M-DBA and get a quote within 24 hours.
