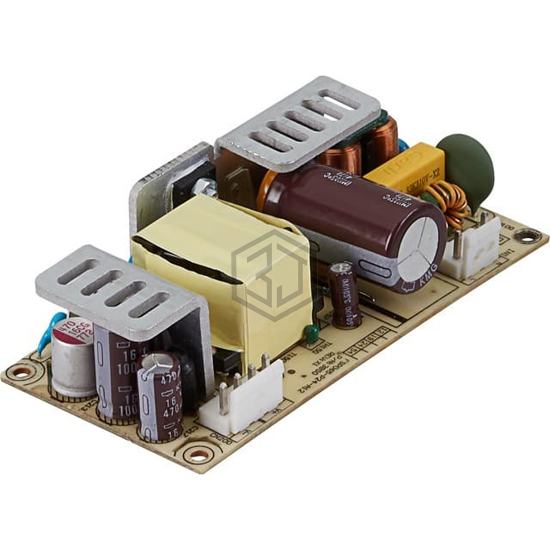

AC/DC CONVERTER 12V 65W
FSP065-P24-A12 is a AC DC Converters manufactured by FSP Technology Inc.. AC/DC CONVERTER 12V 65W. Key specifications: mounting type Chassis Mount, operating temperature -20°C ~ 70°C (With Derating), voltage - input 90 ~ 264 VAC, size / dimension 4.00" L x 2.00" W x 0.98" H (101.6mm x 50.8mm x 25.0mm).
In Stock: 544
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | 5.4 A |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 65W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 500 V |
| Efficiency | 89% |
| Operating Temperature | -20°C ~ 70°C (With Derating) |
| Features | Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 4.00" L x 2.00" W x 0.98" H (101.6mm x 50.8mm x 25.0mm) |
| Approval Agency | CB, CE, cCSAus, FCC, UL, VCCI |
| Standard Number | 60950-1; 62368-1 |
