IC MCU 16BIT 256KB FLASH 144LQFP

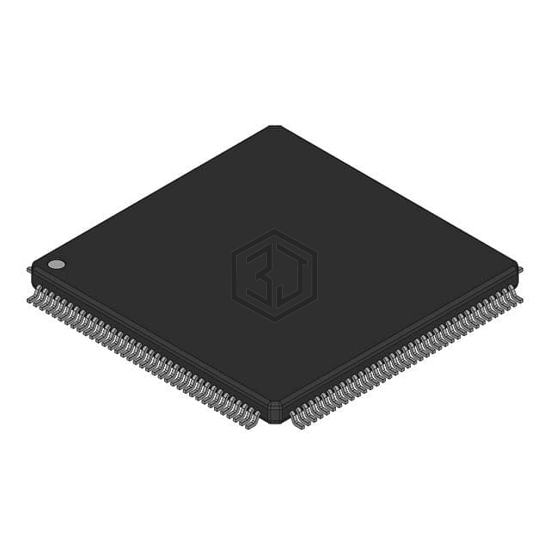

MC9S12XD256MAG is a Embedded - Microcontrollers manufactured by Freescale Semiconductor. IC MCU 16BIT 256KB FLASH 144LQFP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 2.35V ~ 5.5V, package / case 144-LQFP.
In Stock: 5,362
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Core Processor | HCS12X |
| Core Size | 16-Bit |
| Speed | 80MHz |
| Connectivity | CANbus, EBI/EMI, I²C, IrDA, LINbus, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 119 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 14K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.35V ~ 5.5V |
| Data Converters | A/D 24x10b |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 144-LQFP |
| Supplier Device Package | 144-LQFP (20x20) |
MC9S12XD256MAG is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SP5746CHK0AMMJ6R | NXP USA Inc. | IC MCU 32BIT 3MB FLSH 256MAPPBGA | 91% | View |
| R7F7010214AFP-C#AA4 | Renesas Electronics America Inc | IC MCU 32BIT FLASH SMD | 91% | View |
| PIC32MK0256MCJ064T-E/R4X | Microchip Technology | IC MCU 32BIT 256KB FLASH 64VQFN | 89% | View |
| PIC32MK0512MCF064T-E/MR | Microchip Technology | IC MCU 32BIT 512KB FLASH 64QFN | 87% | View |
| SPC5642AF2MVZ3 | Freescale Semiconductor | IC MCU 32BIT 2MB FLASH 324PBGA | 87% | View |
| SPC5748GBK0AMMN6 | NXP USA Inc. | IC MCU 32BIT 6MB FLASH 324MAPBGA | 87% | View |
Submit your RFQ for MC9S12XD256MAG and get a quote within 24 hours.
