16-BIT, FLASH, CPU12 CPU, 25MHZ

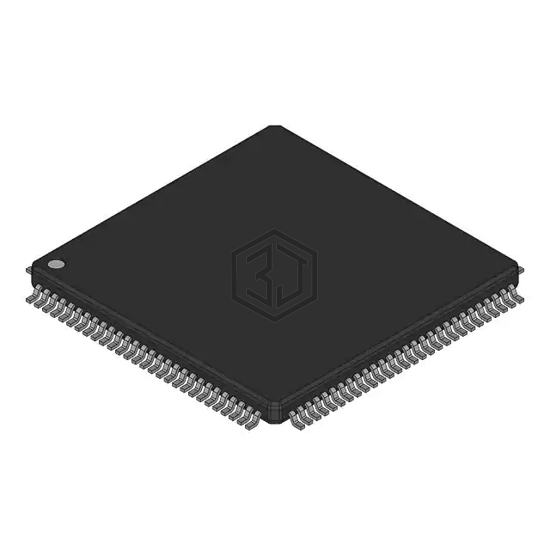

MC9S12DG256CVPV is a Embedded - Microcontrollers manufactured by Freescale Semiconductor. 16-BIT, FLASH, CPU12 CPU, 25MHZ. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TA), voltage - supply (vcc/vdd) 2.35V ~ 5.25V, package / case 112-LQFP.
In Stock: 3,035
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Processor | S12 |
| Core Size | 16-Bit |
| Speed | 25MHz |
| Connectivity | CANbus, I²C, SCI, SPI |
| Peripherals | PWM, WDT |
| Number of I/O | 91 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 12K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.35V ~ 5.25V |
| Data Converters | A/D 16x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 112-LQFP |
| Supplier Device Package | 112-LQFP (20x20) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| S9S12GN48AVLH | NXP USA Inc. | IC MCU 16BIT 48KB FLASH 64LQFP | 89% | View |
| S9S12GA48F0MLF | NXP USA Inc. | IC MCU 16BIT 48KB FLASH 48LQFP | 85% | View |
| S9S12G96F0VLFR | NXP USA Inc. | IC MCU 16BIT 96KB FLASH 48LQFP | 85% | View |
| SAK-C164CI-8E25MDB | Infineon Technologies | IC MCU 16BIT 64KB OTP 80MQFP | 84% | View |
| C8051F850-C-IM | Silicon Labs | IC MCU 8BIT 8KB FLASH 20QFN | 77% | View |
| EFM8BB10F2A-A-QFN20R | Silicon Labs | IC MCU 8BIT 2KB FLASH 20QFN | 77% | View |
Submit your RFQ for MC9S12DG256CVPV and get a quote within 24 hours.
