16-BIT, FLASH, CPU12 CPU, 25MHZ

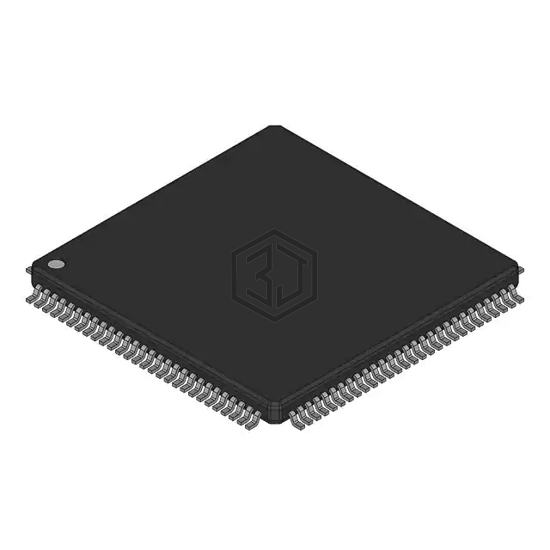

MC9S12DG256CMPV is a Embedded - Microcontrollers manufactured by Freescale Semiconductor. 16-BIT, FLASH, CPU12 CPU, 25MHZ. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 2.35V ~ 5.25V, package / case 112-LQFP.
In Stock: 8,329
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Processor | S12 |
| Core Size | 16-Bit |
| Speed | 25MHz |
| Connectivity | CANbus, I²C, SCI, SPI |
| Peripherals | PWM, WDT |
| Number of I/O | 91 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 4K x 8 |
| RAM Size | 12K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.35V ~ 5.25V |
| Data Converters | A/D 16x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 112-LQFP |
| Supplier Device Package | 112-LQFP (20x20) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PIC18F8520-E/PT | Microchip Technology | IC MCU 8BIT 32KB FLASH 80TQFP | 88% | View |
| S9S12G128F0MLF | NXP USA Inc. | IC MCU 16BIT 128KB FLASH 48LQFP | 85% | View |
| S9S12G48F0MLFR | NXP USA Inc. | IC MCU 16BIT 48KB FLASH 48LQFP | 85% | View |
| S9S12VR48AF0MLF | NXP USA Inc. | IC MCU 16BIT 48KB FLASH 48LQFP | 80% | View |
| PIC32MM0032GPL028-E/SO | Microchip Technology | IC MCU 32BIT 32KB FLASH 28SOIC | 78% | View |
| C8051F855-C-IMR | Silicon Labs | IC MCU 8BIT 2KB FLASH 20QFN | 77% | View |
Submit your RFQ for MC9S12DG256CMPV and get a quote within 24 hours.
