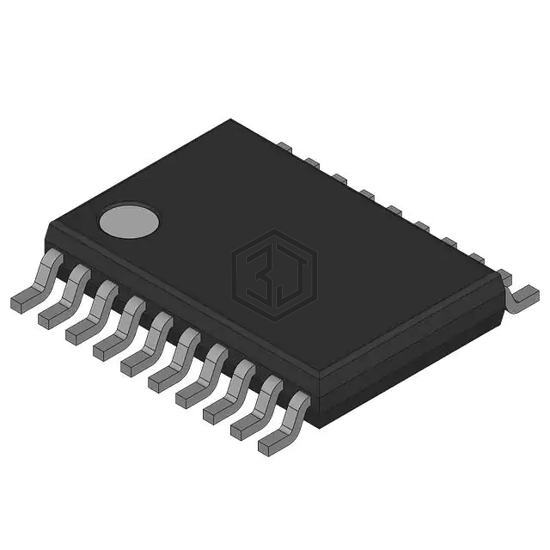

IC MCU 8BIT 16KB FLASH 20TSSOP
MC9S08SH16VTJ is a Embedded - Microcontrollers manufactured by Freescale Semiconductor. IC MCU 8BIT 16KB FLASH 20TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - supply (vcc/vdd) 2.7V ~ 5.5V, package / case 20-TSSOP (0.173", 4.40mm Width).
In Stock: 1,613
| Attribute | Value |
|---|---|
| Product Status | Active |
| Core Processor | S08 |
| Core Size | 8-Bit |
| Speed | 40MHz |
| Connectivity | I²C, LINbus, SCI, SPI |
| Peripherals | LVD, POR, PWM, WDT |
| Number of I/O | 17 |
| Program Memory Size | 16KB (16K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 5.5V |
| Data Converters | A/D 12x10b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
| Supplier Device Package | 20-TSSOP |
