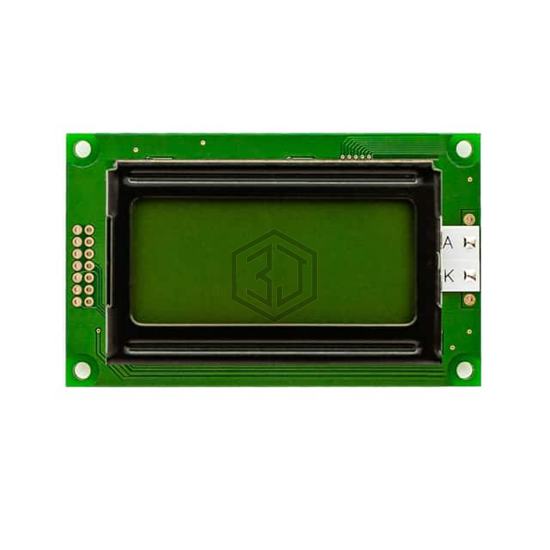

8X2 STN GRAY CHARACTER LCD
C82BXBSGLY2WT1 is a Display Modules - LCD, OLED Character and Numeric manufactured by Focus LCDs. 8X2 STN GRAY CHARACTER LCD. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 4.8V ~ 5.3V, interface Parallel, 4/8-Bit, display type STN - Super-Twisted Nematic.
In Stock: 83
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Characters | 16 |
| Display Format | 8 x 2 |
| Character Format | 5 x 8 Dots |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Character Size | 5.56mm H x 2.96mm W |
| Outline L x W x H | 58.00mm x 32.00mm x 13.50mm |
| Viewing Area | 38.00mm L x 16.00mm W |
| Backlight | LED - Yellow/Green |
| Voltage - Supply | 4.8V ~ 5.3V |
| Dot Size | 0.56mm W x 0.66mm H |
| Interface | Parallel, 4/8-Bit |
| Controller Type | ST7066 |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | - |
| Background Color | Gray |
Submit your RFQ for C82BXBSGLY2WT1 and get a quote within 24 hours.
