8X1 STN YELLOW/GREEN CHARACTER L

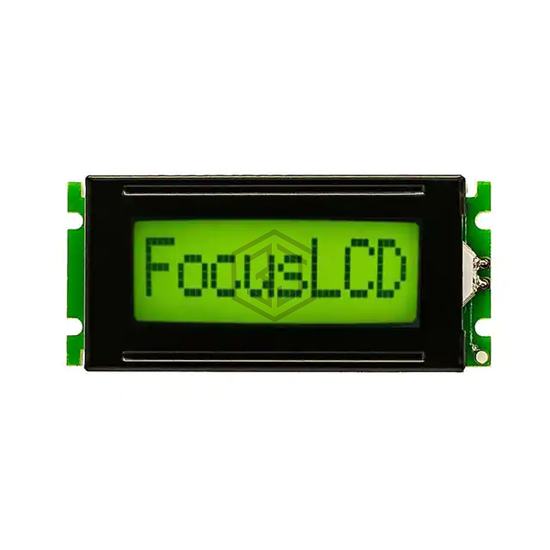

C81BXBSYSY6WT33XAA is a Display Modules - LCD, OLED Character and Numeric manufactured by Focus LCDs. 8X1 STN YELLOW/GREEN CHARACTER L. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 3V ~ 3.5V, interface Parallel, 4/8-Bit, display type STN - Super-Twisted Nematic.
In Stock: 12
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Characters | 8 |
| Display Format | 8 x 1 |
| Character Format | 5 x 8 Dots |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Character Size | 7.10mm H x 3.40mm W |
| Outline L x W x H | 53.00mm x 23.00mm x 8.40mm |
| Viewing Area | 35.00mm L x 12.60mm W |
| Backlight | LED - Yellow/Green |
| Voltage - Supply | 3V ~ 3.5V |
| Dot Size | 0.60mm W x 0.80mm H |
| Interface | Parallel, 4/8-Bit |
| Controller Type | ST7066U |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | - |
| Background Color | Yellow/Green |
Submit your RFQ for C81BXBSYSY6WT33XAA and get a quote within 24 hours.
