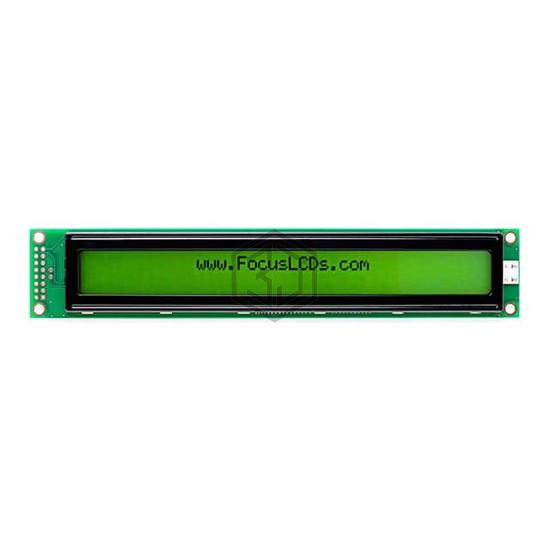

40X2 STN YELLOW/GREEN CHARACTER
C402ALBSYLY6WT33XAA is a Display Modules - LCD, OLED Character and Numeric manufactured by Focus LCDs. 40X2 STN YELLOW/GREEN CHARACTER. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 3.1V ~ 3.5V, interface Parallel, 4/8-Bit, display type STN - Super-Twisted Nematic.
In Stock: 48
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Characters | 80 |
| Display Format | 40 x 2 |
| Character Format | 5 x 7 Dots w/Cursor |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Character Size | 5.55mm H x 3.20mm W |
| Outline L x W x H | 182.00mm x 33.50mm x 13.50mm |
| Viewing Area | 152.50mm L x 16.50mm W |
| Backlight | LED - Yellow/Green |
| Voltage - Supply | 3.1V ~ 3.5V |
| Dot Size | 0.60mm W x 0.65mm H |
| Interface | Parallel, 4/8-Bit |
| Controller Type | ST7066U |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | - |
| Background Color | Yellow/Green |
Submit your RFQ for C402ALBSYLY6WT33XAA and get a quote within 24 hours.
