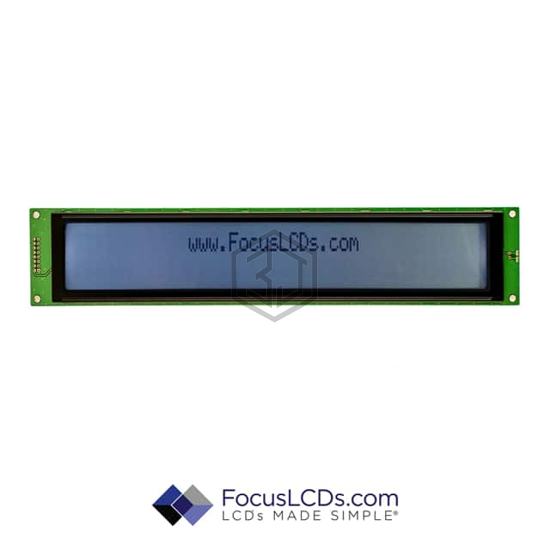

40X2 STN GRAY CHARACTER LCD
C402ALBSGN06WT50PAB is a Display Modules - LCD, OLED Character and Numeric manufactured by Focus LCDs. 40X2 STN GRAY CHARACTER LCD. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 4.5V ~ 5.5V, interface Parallel, 4/8-Bit, display type STN - Super-Twisted Nematic.
In Stock: 25
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Characters | 80 |
| Display Format | 40 x 2 |
| Character Format | 5 x 7 Dots w/Cursor |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Character Size | 14.51mm H x 5.25mm W |
| Outline L x W x H | 285.00mm x 56.00mm x 13.50mm |
| Viewing Area | 246.00mm L x 38.00mm W |
| Backlight | Without Backlight |
| Voltage - Supply | 4.5V ~ 5.5V |
| Dot Size | 1.00mm W x 1.77mm H |
| Interface | Parallel, 4/8-Bit |
| Controller Type | ST7066U |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | - |
| Background Color | Gray |
Submit your RFQ for C402ALBSGN06WT50PAB and get a quote within 24 hours.
