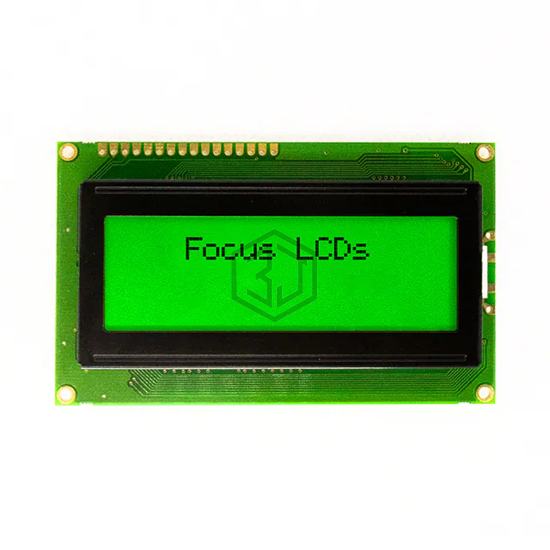

20X4 STN YELLOW/GREEN CHARACTER
C204AXBSYLY6WT is a Display Modules - LCD, OLED Character and Numeric manufactured by Focus LCDs. 20X4 STN YELLOW/GREEN CHARACTER. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 4.7V ~ 5.5V, interface Parallel, 4/8-Bit, display type STN - Super-Twisted Nematic.
In Stock: 24
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Characters | 80 |
| Display Format | 20 x 4 |
| Character Format | 5 x 8 Dots w/Cursor |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Character Size | 4.75mm H x 2.95mm W |
| Outline L x W x H | 98.00mm x 60.00mm x 9.50mm |
| Viewing Area | 76.00mm L x 25.20mm W |
| Backlight | LED - Yellow/Green |
| Voltage - Supply | 4.7V ~ 5.5V |
| Dot Size | 0.55mm W x 0.55mm H |
| Interface | Parallel, 4/8-Bit |
| Controller Type | ST7066U |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | - |
| Background Color | Yellow |
Submit your RFQ for C204AXBSYLY6WT and get a quote within 24 hours.
