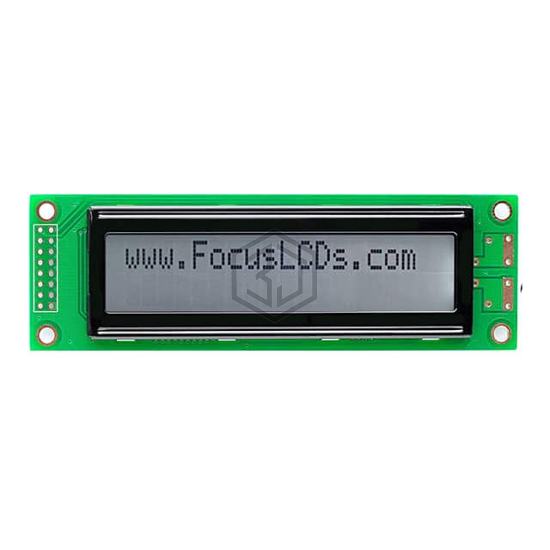

20X2 STN GRAY CHARACTER LCD
C202BXBSGN06NR3 is a Display Modules - LCD, OLED Character and Numeric manufactured by Focus LCDs. 20X2 STN GRAY CHARACTER LCD. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 4.7V ~ 5.5V, interface Parallel, 4/8-Bit, display type STN - Super-Twisted Nematic.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Characters | 40 |
| Display Format | 20 x 2 |
| Character Format | 5 x 8 Dots w/Cursor |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Reflective |
| Character Size | 5.55mm H x 3.20mm W |
| Outline L x W x H | 116.00mm x 37.00mm x 13.50mm |
| Viewing Area | 83.00mm L x 18.60mm W |
| Backlight | Without Backlight |
| Voltage - Supply | 4.7V ~ 5.5V |
| Dot Size | 0.65mm W x 0.60mm H |
| Interface | Parallel, 4/8-Bit |
| Controller Type | ST7066U-0B |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | - |
| Background Color | Gray |
Submit your RFQ for C202BXBSGN06NR3 and get a quote within 24 hours.
