20X2 STN YELLOW/GREEN CHARACTER

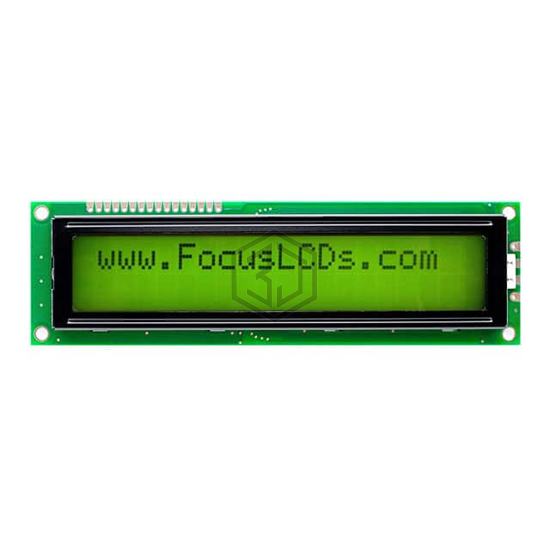

C202ALBSYLY6WT55XAA is a Display Modules - LCD, OLED Character and Numeric manufactured by Focus LCDs. 20X2 STN YELLOW/GREEN CHARACTER. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 4.7V ~ 5.3V, interface Parallel, 4/8-Bit, display type STN - Super-Twisted Nematic.
In Stock: 9,957
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Number of Characters | 40 |
| Display Format | 20 x 2 |
| Character Format | 5 x 7 Dots w/Cursor |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Character Size | 9.22mm H x 4.84mm W |
| Outline L x W x H | 146.00mm x 43.00mm x 13.80mm |
| Viewing Area | 122.00mm L x 23.00mm W |
| Backlight | LED - Yellow/Green |
| Voltage - Supply | 4.7V ~ 5.3V |
| Dot Size | 0.92mm W x 1.10mm H |
| Interface | Parallel, 4/8-Bit |
| Controller Type | ST7066U |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | - |
| Background Color | Yellow/Green |
Submit your RFQ for C202ALBSYLY6WT55XAA and get a quote within 24 hours.
