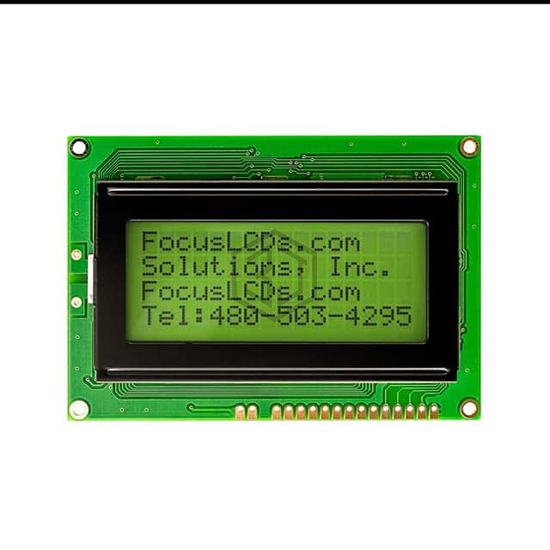

16X4 STN GRAY CHARACTER LCD
C164ADBSGSY6WT55UAA is a Display Modules - LCD, OLED Character and Numeric manufactured by Focus LCDs. 16X4 STN GRAY CHARACTER LCD. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 4.75V ~ 5.25V, interface Parallel, 4/8-Bit, display type STN - Super-Twisted Nematic.
In Stock: 7,108
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Characters | 64 |
| Display Format | 16 x 4 |
| Character Format | 5 x 7 Dots w/Cursor |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Character Size | 4.75mm H x 2.96mm W |
| Outline L x W x H | 87.00mm x 62.00mm x 14.00mm |
| Viewing Area | 62.00mm L x 27.00mm W |
| Backlight | LED - Yellow/Green |
| Voltage - Supply | 4.75V ~ 5.25V |
| Dot Size | 0.55mm W x 0.55mm H |
| Interface | Parallel, 4/8-Bit |
| Controller Type | AIP31066 |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | - |
| Background Color | Gray |
Submit your RFQ for C164ADBSGSY6WT55UAA and get a quote within 24 hours.
