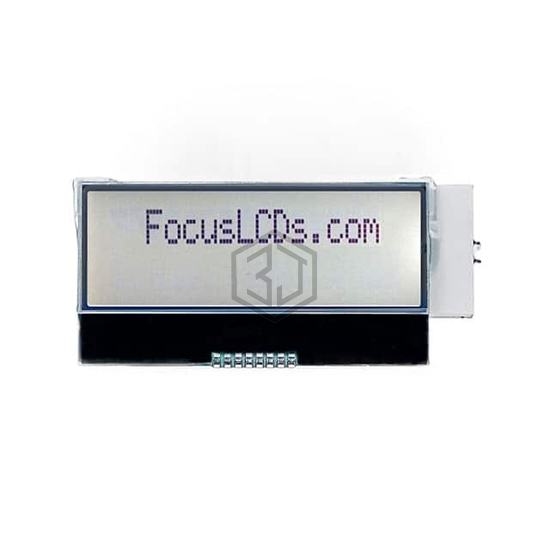

16X2 FSTN GRAY CHARACTER LCD
C162NLGFGSW6WT3CXAH is a Display Modules - LCD, OLED Character and Numeric manufactured by Focus LCDs. 16X2 FSTN GRAY CHARACTER LCD. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 4.7V ~ 5.5V, interface Parallel, 4/8-Bit, display type FSTN - Film Super-Twisted Nematic.
In Stock: 9,099
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Characters | 32 |
| Display Format | 16 x 2 |
| Character Format | 5 x 8 Dots w/Cursor |
| Display Type | FSTN - Film Super-Twisted Nematic |
| Display Mode | Transflective |
| Character Size | 4.68mm H x 2.21mm W |
| Outline L x W x H | 49.70mm x 25.30mm x 5.50mm |
| Viewing Area | 45.70mm L x 14.30mm W |
| Backlight | LED - White |
| Voltage - Supply | 4.7V ~ 5.5V |
| Dot Size | 0.41mm W x 0.55mm H |
| Interface | Parallel, 4/8-Bit |
| Controller Type | ST7032 |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | - |
| Background Color | Gray |
Submit your RFQ for C162NLGFGSW6WT3CXAH and get a quote within 24 hours.
