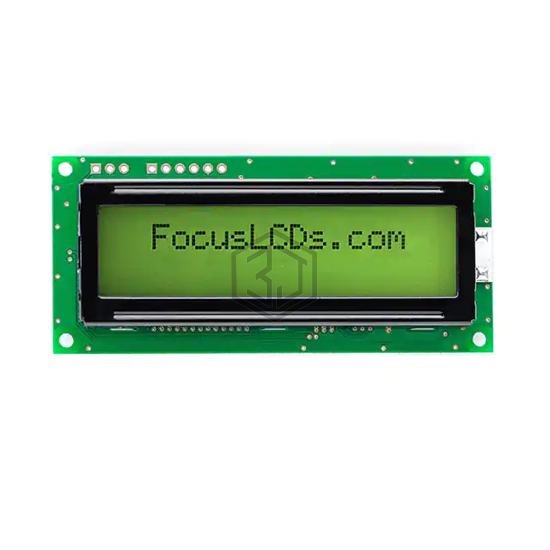

16X2 STN GRAY CHARACTER LCD
C162MLBSGLY6WT55XAA is a Display Modules - LCD, OLED Character and Numeric manufactured by Focus LCDs. 16X2 STN GRAY CHARACTER LCD. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 4.7V ~ 5.5V, interface Parallel, 4/8-Bit, display type STN - Super-Twisted Nematic.
In Stock: 48
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Characters | 32 |
| Display Format | 16 x 2 |
| Character Format | 5 x 8 Dots w/Cursor |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Character Size | 3.23mm H x 1.85mm W |
| Outline L x W x H | 53.00mm x 20.00mm x 8.50mm |
| Viewing Area | 36.00mm L x 10.00mm W |
| Backlight | LED - Yellow/Green |
| Voltage - Supply | 4.7V ~ 5.5V |
| Dot Size | 0.56mm W x 0.61mm H |
| Interface | Parallel, 4/8-Bit |
| Controller Type | ST7066U |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | - |
| Background Color | Gray |
Submit your RFQ for C162MLBSGLY6WT55XAA and get a quote within 24 hours.
