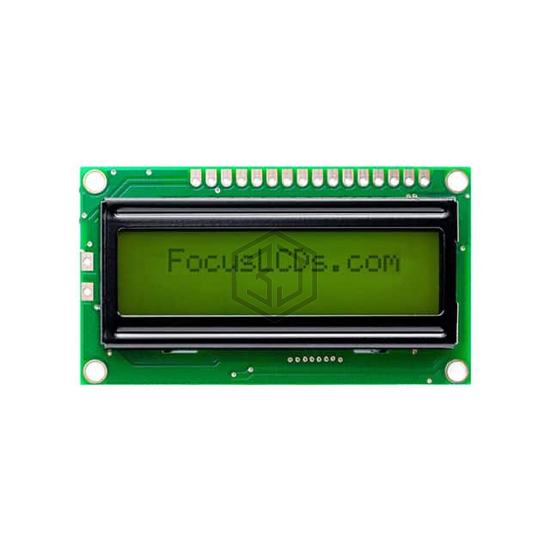

16X2 STN YELLOW/GREEN CHARACTER
C162ELBSYN06WR is a Display Modules - LCD, OLED Character and Numeric manufactured by Focus LCDs. 16X2 STN YELLOW/GREEN CHARACTER. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 4.8V ~ 5.2V, interface Parallel, 4/8-Bit, display type STN - Super-Twisted Nematic.
In Stock: 6,843
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Characters | 32 |
| Display Format | 16 x 2 |
| Character Format | 5 x 7 Dots w/Cursor |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Reflective |
| Character Size | 4.99mm H x 2.55mm W |
| Outline L x W x H | 65.50mm x 36.70mm x 14.00mm |
| Viewing Area | 54.00mm L x 14.40mm W |
| Backlight | Without Backlight |
| Voltage - Supply | 4.8V ~ 5.2V |
| Dot Size | 0.47mm W x 0.58mm H |
| Interface | Parallel, 4/8-Bit |
| Controller Type | SPLC780D |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | - |
| Background Color | Yellow |
Submit your RFQ for C162ELBSYN06WR and get a quote within 24 hours.
