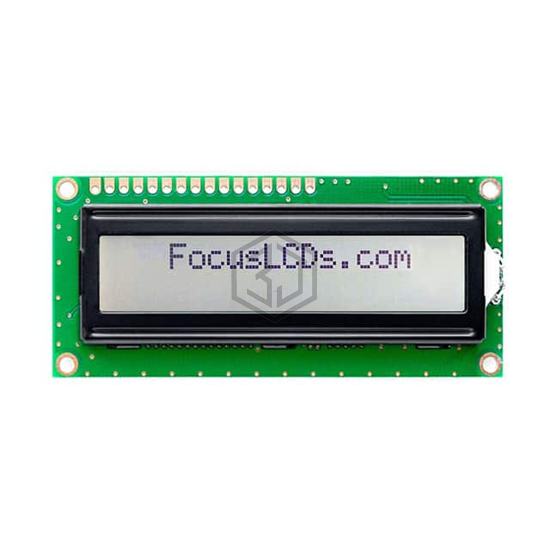

16X2 STN GRAY CHARACTER LCD
C162ALBSGLW6WT33PAB is a Display Modules - LCD, OLED Character and Numeric manufactured by Focus LCDs. 16X2 STN GRAY CHARACTER LCD. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 3.1V ~ 3.5V, interface Parallel, 4/8-Bit, display type STN - Super-Twisted Nematic.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Characters | 32 |
| Display Format | 16 x 2 |
| Character Format | 5 x 7 Dots w/Cursor |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Character Size | 4.35mm H x 2.95mm W |
| Outline L x W x H | 80.00mm x 36.00mm x 13.50mm |
| Viewing Area | 64.50mm L x 13.80mm W |
| Backlight | LED - White |
| Voltage - Supply | 3.1V ~ 3.5V |
| Dot Size | 0.50mm W x 0.55mm H |
| Interface | Parallel, 4/8-Bit |
| Controller Type | SPLC780D |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | - |
| Background Color | Gray |
Submit your RFQ for C162ALBSGLW6WT33PAB and get a quote within 24 hours.
