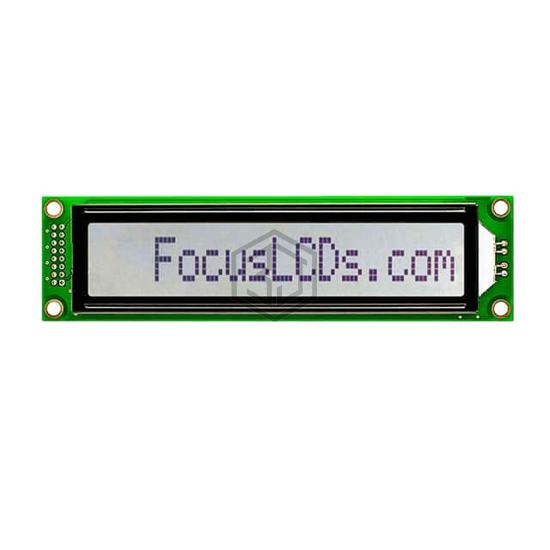

16X1 FSTN GRAY CHARACTER LCD
C161CLBFKSW6WT55XAA is a Display Modules - LCD, OLED Character and Numeric manufactured by Focus LCDs. 16X1 FSTN GRAY CHARACTER LCD. Key specifications: operating temperature -20°C ~ 70°C, voltage - supply 4.7V ~ 5.5V, interface Parallel, 4/8-Bit, display type FSTN - Film Super-Twisted Nematic.
In Stock: 8,321
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Number of Characters | 16 |
| Display Format | 16 x 1 |
| Character Format | 5 x 7 Dots w/Cursor |
| Display Type | FSTN - Film Super-Twisted Nematic |
| Display Mode | Transflective |
| Character Size | 14.54mm H x 6.00mm W |
| Outline L x W x H | 151.00mm x 40.00mm x 13.00mm |
| Viewing Area | 120.00mm L x 23.00mm W |
| Backlight | LED - White |
| Voltage - Supply | 4.7V ~ 5.5V |
| Dot Size | 1.15mm W x 1.77mm H |
| Interface | Parallel, 4/8-Bit |
| Controller Type | ST7066U |
| Operating Temperature | -20°C ~ 70°C |
| Text Color | - |
| Background Color | White |
Submit your RFQ for C161CLBFKSW6WT55XAA and get a quote within 24 hours.
