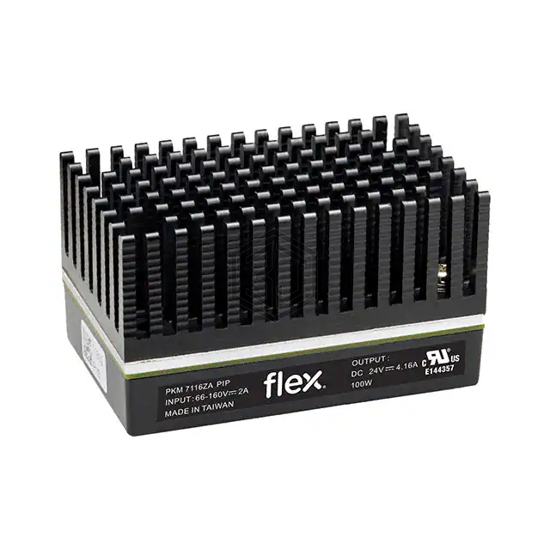

DC DC CONVERTER 24V 100W
PKM7116ZAPIPLHS is a DC DC Converters manufactured by Flex Power Modules. DC DC CONVERTER 24V 100W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 115°C (With Derating), package / case Quarter Brick, current - output (max) 4.16A.
In Stock: 35
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 66V |
| Voltage - Input (Max) | 160V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 4.16A |
| Power (Watts) | 100 W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial), Railway |
| Features | Adjustable Output, Heat Sink, Remote On/Off, Remote Sense |
| Operating Temperature | -40°C ~ 115°C (With Derating) |
| Efficiency | 89% |
| Mounting Type | Through Hole |
| Package / Case | Quarter Brick |
| Size / Dimension | 2.28" L x 1.45" W x 1.01" H (57.9mm x 36.8mm x 25.6mm) |
| Supplier Device Package | Quarter Brick |
| Control Features | Enable, Active High |
| Approval Agency | CB, CSA, EN, IEC, TUV, UL |
| Standard Number | 50155; 62368-1 |
