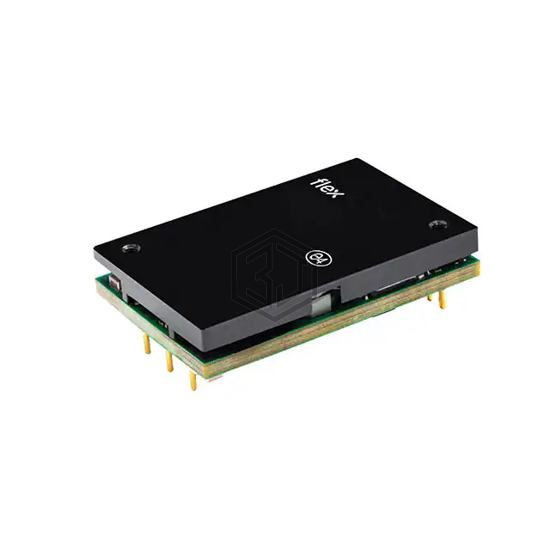

DC DC CONVERTER 10.8V 864W
PKM4717NHPIHS is a DC DC Converters manufactured by Flex Power Modules. DC DC CONVERTER 10.8V 864W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (With Derating), package / case Quarter Brick, current - output (max) 80A.
In Stock: 56
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Intermediate Bus Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 40V |
| Voltage - Input (Max) | 60V |
| Voltage - Output 1 | 10.8V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 80A |
| Power (Watts) | 864 W |
| Voltage - Isolation | 2.25 kV |
| Applications | ITE (Commercial) |
| Features | Baseplate, Remote On/Off |
| Operating Temperature | -40°C ~ 125°C (With Derating) |
| Efficiency | 96.9% |
| Mounting Type | Through Hole |
| Package / Case | Quarter Brick |
| Size / Dimension | 2.28" L x 1.45" W x 0.56" H (57.9mm x 36.8mm x 14.3mm) |
| Supplier Device Package | Quarter Brick |
| Control Features | Enable, Active Low |
| Approval Agency | CB, CSA, IEC, TUV, UL |
| Standard Number | 62368-1 |
