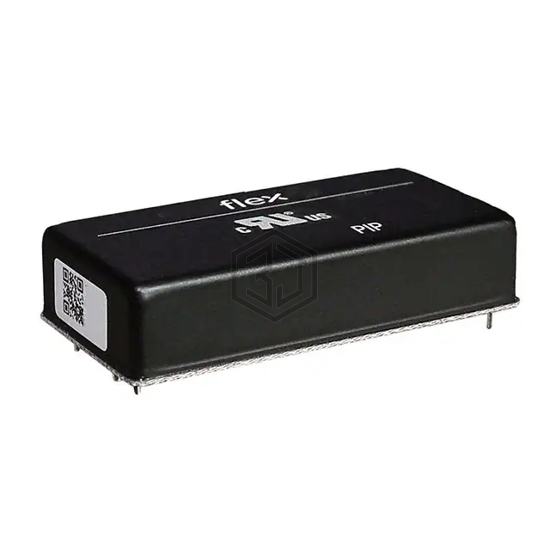

DC DC CONVERTER 5V 40W
PKE8411API is a DC DC Converters manufactured by Flex Power Modules. DC DC CONVERTER 5V 40W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 115°C (With Derating), package / case 6-DIP Module, current - output (max) 8A.
In Stock: 59
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 8A |
| Power (Watts) | 40 W |
| Voltage - Isolation | 2.25 kV |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Remote On/Off |
| Operating Temperature | -40°C ~ 115°C (With Derating) |
| Efficiency | 88% |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Size / Dimension | 2.00" L x 1.00" W x 0.47" H (50.8mm x 25.4mm x 11.9mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | CB, CSA, IEC, TUV, UL |
| Standard Number | 62368-1 |
