DC DC CONVERTER 48V 30W

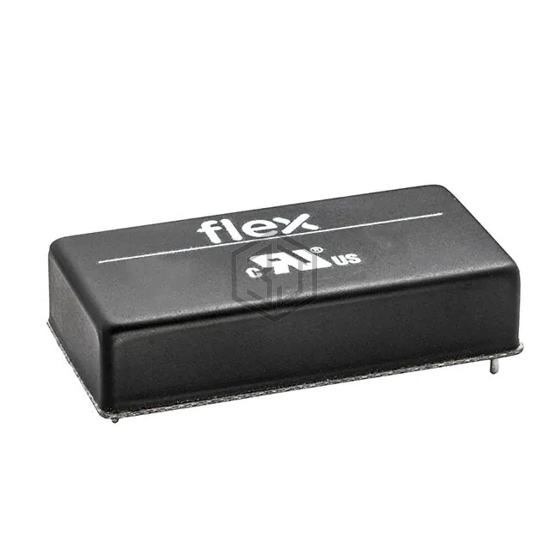

PKE7316JAPI is a DC DC Converters manufactured by Flex Power Modules. DC DC CONVERTER 48V 30W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 110°C (With Derating), package / case 6-DIP Module, current - output (max) 625mA.
In Stock: 33
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 43V |
| Voltage - Input (Max) | 160V |
| Voltage - Output 1 | 48V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 625mA |
| Power (Watts) | 30 W |
| Voltage - Isolation | 3 kV |
| Applications | ITE (Commercial), Railway |
| Features | Adjustable Output, Remote On/Off, Remote Sense |
| Operating Temperature | -40°C ~ 110°C (With Derating) |
| Efficiency | 91% |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Size / Dimension | 2.00" L x 1.00" W x 0.47" H (50.8mm x 25.4mm x 11.9mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | CB, CSA, EN, IEC, TUV, UL |
| Standard Number | 50155; 62368-1 |
Submit your RFQ for PKE7316JAPI and get a quote within 24 hours.
