SMALL SIGNAL N-CHANNEL MOSFET

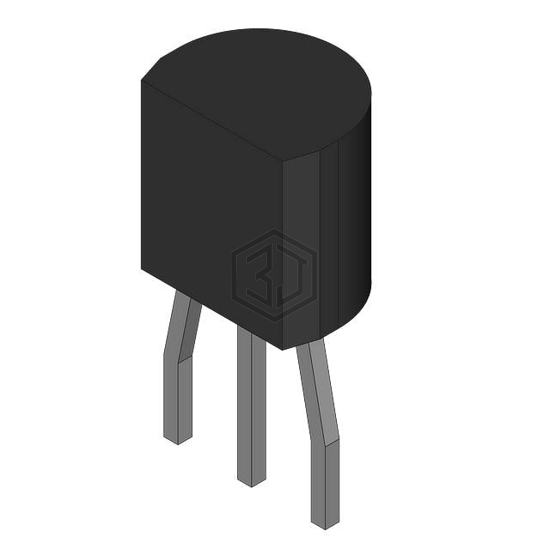

PN4091 is a Transistors - JFETs manufactured by Fairchild Semiconductor. SMALL SIGNAL N-CHANNEL MOSFET. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-226-3, TO-92-3 (TO-226AA), power - max 625 mW.
In Stock: 26,905
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Voltage - Breakdown (V(BR)GSS) | 40 V |
| Drain to Source Voltage (Vdss) | - |
| Current - Drain (Idss) @ Vds (Vgs=0) | 30 mA @ 20 V |
| Current Drain (Id) - Max | - |
| Voltage - Cutoff (VGS off) @ Id | 5 V @ 1 nA |
| Input Capacitance (Ciss) (Max) @ Vds | 16pF @ 20V |
| Resistance - RDS(On) | 30 Ohms |
| Power - Max | 625 mW |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) |
| Supplier Device Package | TO-92-3 |
Submit your RFQ for PN4091 and get a quote within 24 hours.
