IC INVERT SCHMITT 2CH 2-INP SC88

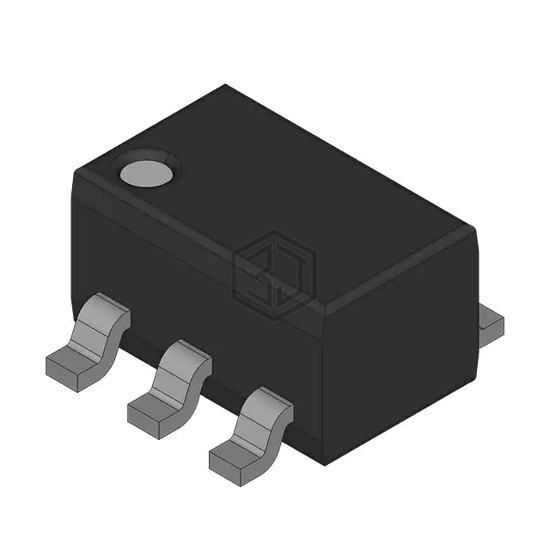

NC7WZ14P6 is a Logic - Gates and Inverters manufactured by Fairchild Semiconductor. IC INVERT SCHMITT 2CH 2-INP SC88. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 1.8V ~ 5.5V, package / case 6-TSSOP, SC-88, SOT-363.
In Stock: 7,567
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | Inverter |
| Number of Circuits | 2 |
| Number of Inputs | 2 |
| Features | Schmitt Trigger Input |
| Voltage - Supply | 1.8V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 32mA, 32mA |
| Logic Level - Low | 0.9V ~ 2.3V |
| Logic Level - High | 1.5V ~ 3.6V |
| Max Propagation Delay @ V, Max CL | 4.9ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-88 (SC-70-6) |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NC7WZ04P6 | Fairchild Semiconductor | INVERTER, LVC/LCX/Z SERIES, 2 FU | 93% | View |
| 74LVC2G04GW-Q100H | Nexperia USA Inc. | IC INVERTER 2CH 2-INP 6TSSOP | 81% | View |
| SN74LVC2GU04DBVR | Texas Instruments | IC INVERTER 2CH 2-INP SOT23-6 | 77% | View |
| 1P1G14MDBVREP | Texas Instruments | IC INVERTER 1CH 1-INP SOT23-5 | 76% | View |
| SN74LVC1GU04DCKR | Texas Instruments | IC INVERTER 1CH 1-INP SC70-5 | 70% | View |
| SN74LVC1GU04DPWR | Texas Instruments | IC INVERTER 1CH 1-INP 5X2SON | 56% | View |
Submit your RFQ for NC7WZ14P6 and get a quote within 24 hours.
