NOR GATE, P SERIES, 2-FUNC, 2-IN

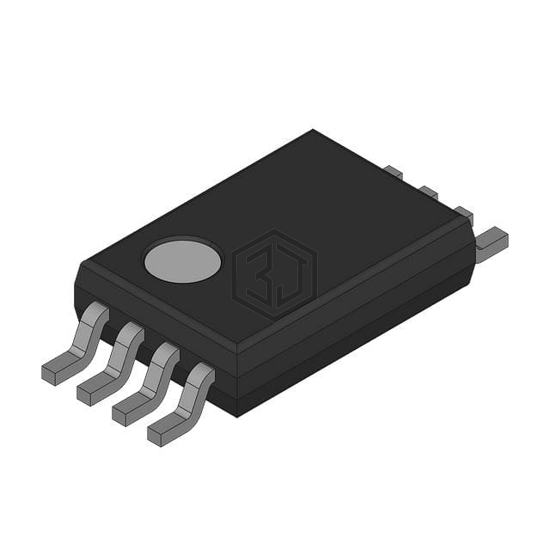

NC7WP02K8X is a Logic - Gates and Inverters manufactured by Fairchild Semiconductor. NOR GATE, P SERIES, 2-FUNC, 2-IN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 0.9V ~ 3.6V, package / case 8-VFSOP (0.091", 2.30mm Width).
In Stock: 51,163
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | NOR Gate |
| Number of Circuits | 2 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 0.9V ~ 3.6V |
| Current - Quiescent (Max) | 900 nA |
| Current - Output High, Low | 2.6mA, 2.6mA |
| Logic Level - Low | 0.7V ~ 0.9V |
| Logic Level - High | 1.6V ~ 2.1V |
| Max Propagation Delay @ V, Max CL | 7ns @ 3.3V, 30pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | US8 |
| Package / Case | 8-VFSOP (0.091", 2.30mm Width) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NC7SP02L6X | Fairchild Semiconductor | IC GATE NOR 1CH 2-INP 6MICROPAK | 96% | View |
| NC7SP02P5X | onsemi | IC GATE NOR 1CH 2-INP SC70-5 | 96% | View |
| NLVHC1G02DFT2G | onsemi | IC GATE NOR 1CH 2-INP SC88A | 74% | View |
| TC7S02FU,LF | Toshiba Semiconductor and Storage | IC GATE NOR 1CH 2-INP USV | 74% | View |
| TC7S02F,LF | Toshiba Semiconductor and Storage | IC GATE NOR 1CH 2-INP SMV | 74% | View |
| NC7S02M5X | onsemi | IC GATE NOR 1CH 2-INP SOT23-5 | 74% | View |
Submit your RFQ for NC7WP02K8X and get a quote within 24 hours.
