AND GATE, HST/T SERIES, 1-FUNC,

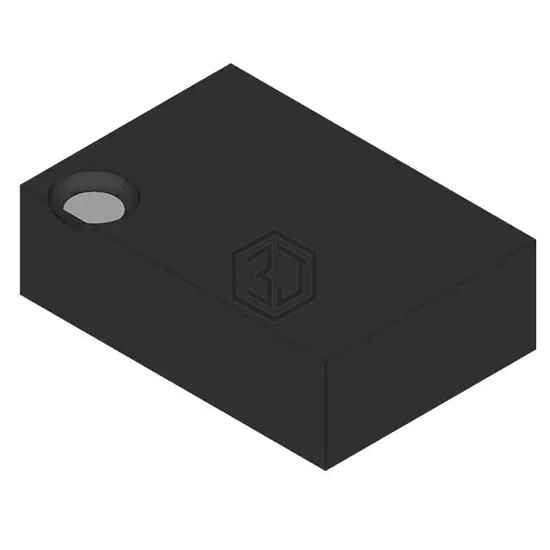

NC7ST08L6X is a Logic - Gates and Inverters manufactured by Fairchild Semiconductor. AND GATE, HST/T SERIES, 1-FUNC,. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 4.5V ~ 5.5V, package / case 6-UFDFN.
In Stock: 151,275
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | AND Gate |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 2mA, 2mA |
| Logic Level - Low | 0.8V |
| Logic Level - High | 2V |
| Max Propagation Delay @ V, Max CL | 26ns @ 5.5V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-MicroPak |
| Package / Case | 6-UFDFN |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NC7ST08M5X | onsemi | IC GATE AND 1CH 2-INP SOT23-5 | 100% | View |
| NC7ST08P5X | onsemi | IC GATE AND 1CH 2-INP SC70-5 | 100% | View |
| 74HCT1G08GW/S400125 | NXP USA Inc. | IC GATE AND 1CH 2-INP 5TSSOP | 89% | View |
| 74HCT1G08GV,125 | Nexperia USA Inc. | IC GATE AND 1CH 2-INP SC74A | 89% | View |
| 74HCT1G08GV-Q100125 | NXP USA Inc. | IC GATE AND 1CH 2-INP SC74A | 89% | View |
| 74HCT1G08GW-Q100125 | Nexperia USA Inc. | IC GATE AND 1CH 2-INP 5TSSOP | 89% | View |
Submit your RFQ for NC7ST08L6X and get a quote within 24 hours.
