SPST, 4 FUNC, 1 CHANNEL, CMOS

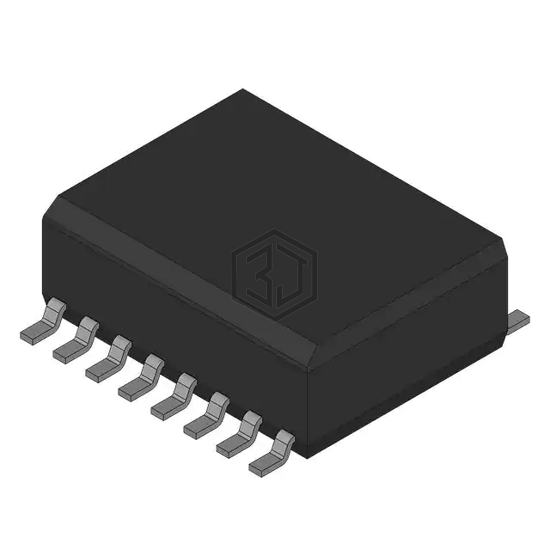

MM74HC4316WM is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Fairchild Semiconductor. SPST, 4 FUNC, 1 CHANNEL, CMOS. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-SOIC (0.295", 7.50mm Width), number of circuits 4.
In Stock: 4,110
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 70Ohm |
| Channel-to-Channel Matching (ΔRon) | 5Ohm |
| Voltage - Supply, Single (V+) | 2V ~ 12V |
| Voltage - Supply, Dual (V±) | ±2.6V ~ 6V |
| Switch Time (Ton, Toff) (Max) | 14ns, 20ns |
| -3db Bandwidth | 100MHz |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | - |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Crosstalk | -50dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
MM74HC4316WM is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MM74HC4316WMX | Fairchild Semiconductor | SPST, 4 FUNC, 1 CHANNEL, CMOS | 100% | View |
| SN74LV4053ADGVR | Texas Instruments | IC MUX/DEMUX TRIPLE 2X1 16TVSOP | 73% | View |
| MAX4652EUE+T | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16TSSOP | 73% | View |
| SN74LV4052ADR | Texas Instruments | IC MULTIPLEXER DUAL 4X1 16SOIC | 69% | View |
| ADG722BRMZ-REEL7 | Analog Devices Inc. | IC SWITCH DUAL SPST 8MSOP | 53% | View |
| ADG722BRMZ-REEL | Analog Devices Inc. | IC SWITCH DUAL SPST 8MSOP | 53% | View |
Submit your RFQ for MM74HC4316WM and get a quote within 24 hours.
