LOGIC IC OUTPUT OPTOCOUPLER, 2-E

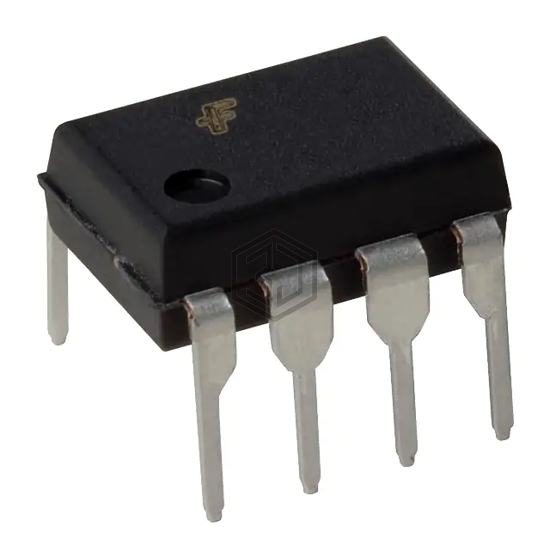

HCPL2530M is a Optoisolators - Transistor, Photovoltaic Output manufactured by Fairchild Semiconductor. LOGIC IC OUTPUT OPTOCOUPLER, 2-E. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 100°C, voltage - forward (vf) (typ) 1.45V, package / case 8-DIP (0.300", 7.62mm).
In Stock: 719
| Attribute | Value |
|---|---|
| Product Status | Active |
| Number of Channels | 2 |
| Voltage - Isolation | 2500Vrms |
| Current Transfer Ratio (Min) | 7% @ 16mA |
| Current Transfer Ratio (Max) | 50% @ 16mA |
| Turn On / Turn Off Time (Typ) | 450ns, 500ns |
| Rise / Fall Time (Typ) | - |
| Input Type | DC |
| Output Type | Transistor |
| Voltage - Output (Max) | 20V |
| Current - Output / Channel | 8mA |
| Voltage - Forward (Vf) (Typ) | 1.45V |
| Current - DC Forward (If) (Max) | 25 mA |
| Vce Saturation (Max) | - |
| Operating Temperature | -55°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-DIP |
Submit your RFQ for HCPL2530M and get a quote within 24 hours.
