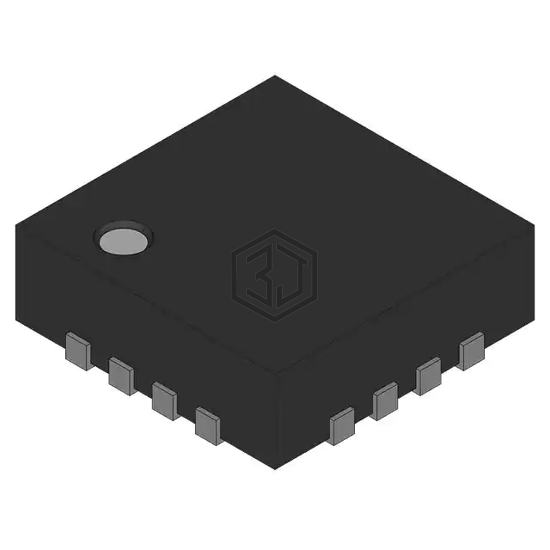

AUDIO/VIDEO SWITCH
FSA3259BQX is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Fairchild Semiconductor. AUDIO/VIDEO SWITCH. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-WFQFN Exposed Pad, number of circuits 2.
In Stock: 6,349
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SP3T |
| Multiplexer/Demultiplexer Circuit | 3:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 15Ohm |
| Channel-to-Channel Matching (ΔRon) | 150mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 6.5ns, 3.7ns |
| -3db Bandwidth | 250MHz |
| Charge Injection | 3pC |
| Channel Capacitance (CS(off), CD(off)) | 3.6pF |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Crosstalk | -60dB @ 10MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFQFN Exposed Pad |
| Supplier Device Package | 16-DQFN (2.5x3.5) |
FSA3259BQX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| FSA3357L8X | Fairchild Semiconductor | LOW VOLTAGE SP3T ANALOG SWITCH ( | 87% | View |
| FSA3357K8X | onsemi | IC SWITCH SP3T US8 | 87% | View |
| TS5A3357DCUR | Texas Instruments | IC SWITCH SP3T SINGLE 8VSSOP | 84% | View |
| TS5A3357DCUT | Texas Instruments | IC SWITCH SP3T SINGLE 8VSSOP | 84% | View |
| NS5B1G384DFT2G | onsemi | IC ANLG SWITCH SPST NC SC-70-5 | 83% | View |
| PI5A3167CTAEX | Diodes Incorporated | IC SWITCH SPST 0.8 OHM SOT23-5 | 73% | View |
Submit your RFQ for FSA3259BQX and get a quote within 24 hours.
