DPDT, 2 FUNC, 2 CHANNEL, PBGA12

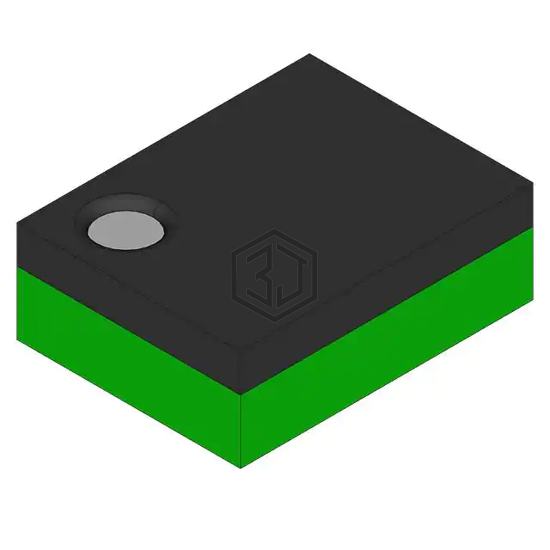

FSA2859UCX is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Fairchild Semiconductor. DPDT, 2 FUNC, 2 CHANNEL, PBGA12. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 12-UFBGA, WLCSP, number of circuits 2.
In Stock: 8,542
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | DPDT |
| Multiplexer/Demultiplexer Circuit | 2:2 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 750mOhm |
| Channel-to-Channel Matching (ΔRon) | 50mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 25ns, 20ns |
| -3db Bandwidth | 60MHz |
| Charge Injection | 47pC |
| Channel Capacitance (CS(off), CD(off)) | 50pF |
| Current - Leakage (IS(off)) (Max) | 10nA |
| Crosstalk | -65dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 12-UFBGA, WLCSP |
| Supplier Device Package | 12-WLCSP (1.9x1.4) |
FSA2859UCX is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL43L740IR-T | Intersil | DIFFERENTIAL MUX, 4 CHANNEL | 86% | View |
| ISL84782IV | Intersil | DIFFERENTIAL MUX, 4 CHANNEL | 86% | View |
| ADG836YCPZ-REEL7 | Analog Devices Inc. | IC SWITCH DUAL SPDT 12LFCSP | 79% | View |
| ADG836LYRM | Analog Devices Inc. | IC SWITCH DUAL SPDT 10MSOP | 79% | View |
| ADG836YRM-REEL7 | Analog Devices Inc. | IC SWITCH DUAL SPDT 10MSOP | 79% | View |
| MAX4736EUB+ | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPDT 10UMAX | 60% | View |
