SPST, 1 CHANNEL, CMOS, PDSO6

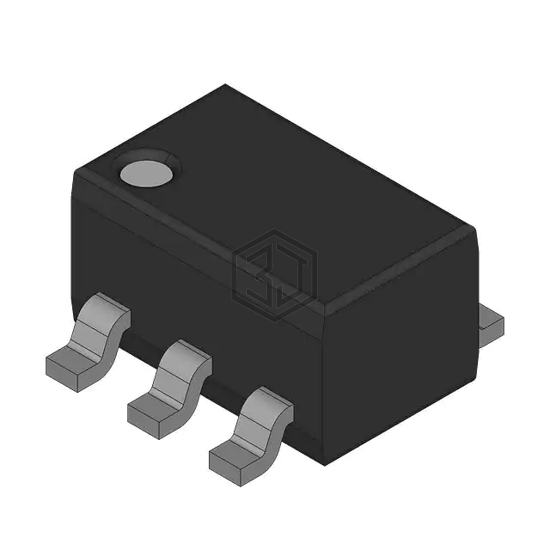

FSA1156P6 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Fairchild Semiconductor. SPST, 1 CHANNEL, CMOS, PDSO6. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 6-TSSOP, SC-88, SOT-363, number of circuits 1.
In Stock: 3,382
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 1 |
| On-State Resistance (Max) | 900mOhm |
| Channel-to-Channel Matching (ΔRon) | - |
| Voltage - Supply, Single (V+) | 1.65V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 20ns, 30ns |
| -3db Bandwidth | 300MHz |
| Charge Injection | 20pC |
| Channel Capacitance (CS(off), CD(off)) | 20pF |
| Current - Leakage (IS(off)) (Max) | 2nA |
| Crosstalk | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SC-88 (SC-70-6) |
FSA1156P6 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL43L410IR-T | Intersil | SINGLE-ENDED MUX, 2 FUNC, 2 CH | 80% | View |
| ISL43L410IRZ-T | Renesas Electronics America Inc | IC SWITCH DPDT 10TDFN | 80% | View |
| MAX4706EXK+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST SC70-5 | 78% | View |
| MAX4707EXT+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST SC70-6 | 78% | View |
| 74HC1G66GW,125 | Nexperia USA Inc. | IC SWITCH SPST 5TSSOP | 69% | View |
| PI5A392AQE | Diodes Incorporated | IC SWITCH QUAD SPST 16QSOP | 58% | View |
Submit your RFQ for FSA1156P6 and get a quote within 24 hours.
