AC IN-DARLINGTON OUT OPTOCOUPLER

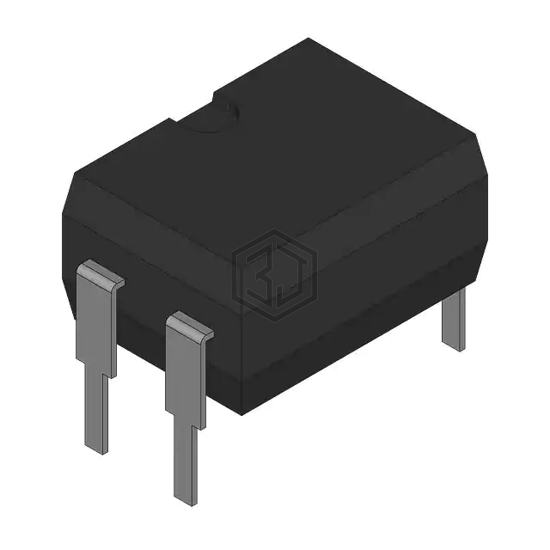

FOD816 is a Optoisolators - Transistor, Photovoltaic Output manufactured by Fairchild Semiconductor. AC IN-DARLINGTON OUT OPTOCOUPLER. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 4-DIP (0.300", 7.62mm).
In Stock: 2,595
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Current Transfer Ratio (Min) | 600% @ 1mA |
| Current Transfer Ratio (Max) | 7500% @ 1mA |
| Turn On / Turn Off Time (Typ) | - |
| Rise / Fall Time (Typ) | 60µs, 53µs |
| Input Type | AC, DC |
| Output Type | Darlington |
| Voltage - Output (Max) | 35V |
| Current - Output / Channel | 80mA |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 50 mA |
| Vce Saturation (Max) | 1V |
| Operating Temperature | -30°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 4-DIP (0.300", 7.62mm) |
| Supplier Device Package | 4-DIP |
Submit your RFQ for FOD816 and get a quote within 24 hours.
