IGBT, 100A, 600V, N-CHANNEL

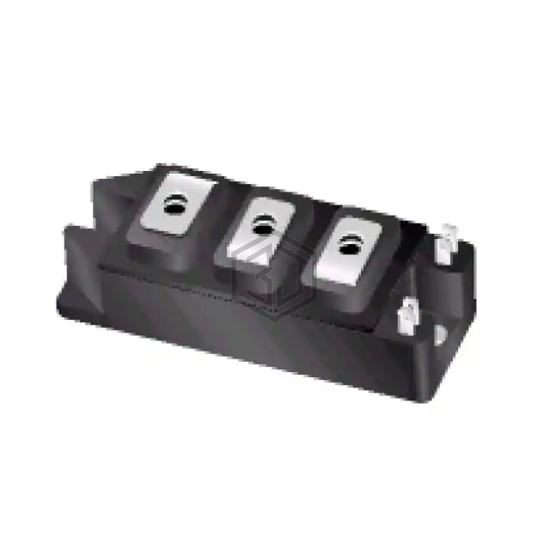

FMG1G100US60L is a Transistors - IGBTs - Modules manufactured by Fairchild Semiconductor. IGBT, 100A, 600V, N-CHANNEL. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 150°C (TJ), package / case 7PM-GA, current - collector (ic) (max) 100 A.
In Stock: 46
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| IGBT Type | - |
| Configuration | Single |
| Voltage - Collector Emitter Breakdown (Max) | 600 V |
| Current - Collector (Ic) (Max) | 100 A |
| Power - Max | 400 W |
| Vce(on) (Max) @ Vge, Ic | 2.8V @ 15V, 100A |
| Current - Collector Cutoff (Max) | 250 µA |
| Input Capacitance (Cies) @ Vce | 10.84 nF @ 30 V |
| Input | Standard |
| NTC Thermistor | No |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Chassis Mount |
| Package / Case | 7PM-GA |
| Supplier Device Package | 7PM-GA |
Submit your RFQ for FMG1G100US60L and get a quote within 24 hours.
