SMALL SIGNAL BIPOLAR TRANSISTOR

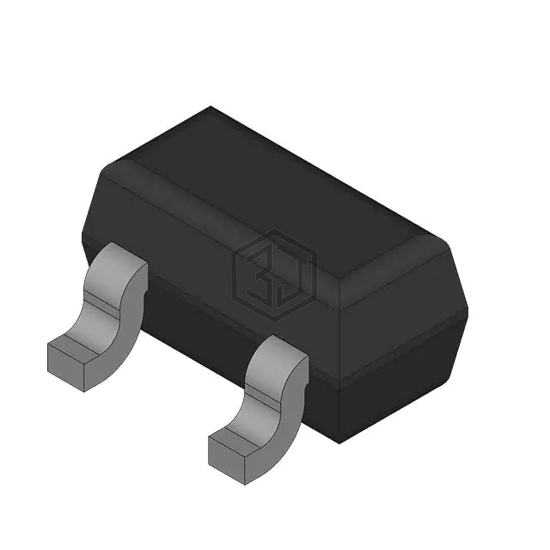

FJY3015R is a Transistors - Bipolar (BJT) - Single, Pre-Biased manufactured by Fairchild Semiconductor. SMALL SIGNAL BIPOLAR TRANSISTOR. Key specifications: mounting type Surface Mount, package / case SC-89, SOT-490, current - collector (ic) (max) 100 mA.
In Stock: 19,431
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Transistor Type | NPN - Pre-Biased |
| Current - Collector (Ic) (Max) | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| Resistor - Base (R1) | 2.2 kOhms |
| Resistor - Emitter Base (R2) | 10 kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 33 @ 10mA, 5V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 500µA, 10mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| Frequency - Transition | 250 MHz |
| Power - Max | - |
| Mounting Type | Surface Mount |
| Package / Case | SC-89, SOT-490 |
| Supplier Device Package | SOT-523F |
Submit your RFQ for FJY3015R and get a quote within 24 hours.
