SMALL SIGNAL BIPOLAR TRANSISTOR

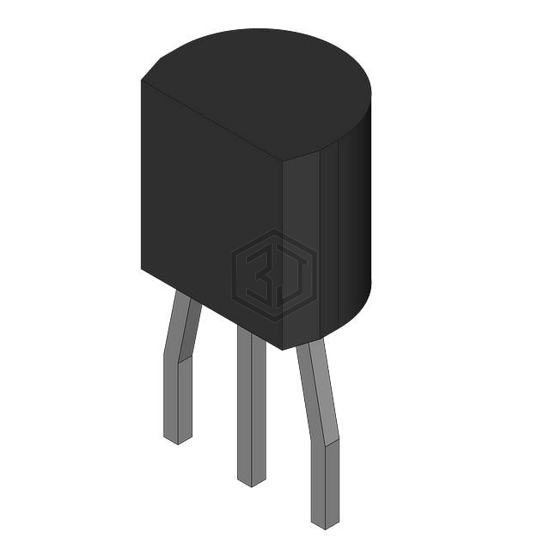

FJN4303RBU is a Transistors - Bipolar (BJT) - Single, Pre-Biased manufactured by Fairchild Semiconductor. SMALL SIGNAL BIPOLAR TRANSISTOR. Key specifications: mounting type Through Hole, package / case TO-226-3, TO-92-3 (TO-226AA), current - collector (ic) (max) 100 mA, power - max 300 mW.
In Stock: 20,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Transistor Type | PNP - Pre-Biased |
| Current - Collector (Ic) (Max) | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V |
| Resistor - Base (R1) | 22 kOhms |
| Resistor - Emitter Base (R2) | 22 kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 56 @ 5mA, 5V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 500µA, 10mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| Frequency - Transition | 200 MHz |
| Power - Max | 300 mW |
| Mounting Type | Through Hole |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) |
| Supplier Device Package | TO-92-3 |
Submit your RFQ for FJN4303RBU and get a quote within 24 hours.
