MOSFET P-CH 30V 1.1A 4WLCSP

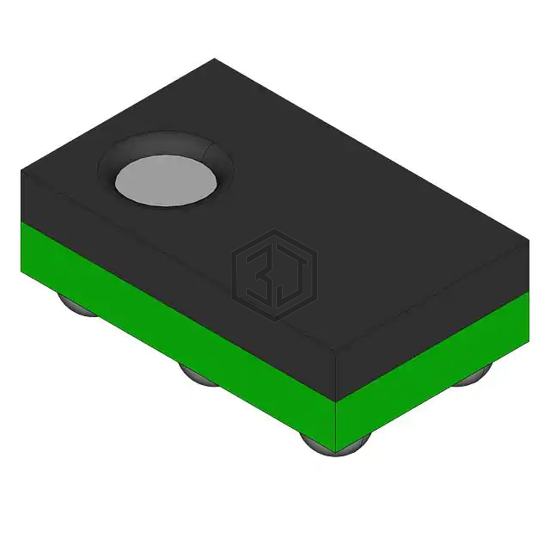

FDZ3N513ZT is a Transistors - FETs, MOSFETs - Single manufactured by Fairchild Semiconductor. MOSFET P-CH 30V 1.1A 4WLCSP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case 4-XFBGA, WLCSP.
In Stock: 25,469
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 1.1A |
| Drive Voltage (Max Rds On, Min Rds On) | - |
| Rds On (Max) @ Id, Vgs | 462mOhm @ 300mA, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 1 nC @ 4.5 V |
| Vgs (Max) | +5.5V, -300mV |
| Input Capacitance (Ciss) (Max) @ Vds | 85 pF @ 15 V |
| FET Feature | Schottky Diode (Isolated) |
| Power Dissipation (Max) | 1W (Ta) |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 4-WLCSP (1x1) |
| Package / Case | 4-XFBGA, WLCSP |
Submit your RFQ for FDZ3N513ZT and get a quote within 24 hours.
