MOSFET P-CH 20V 4.2A SC75-6 FLMP

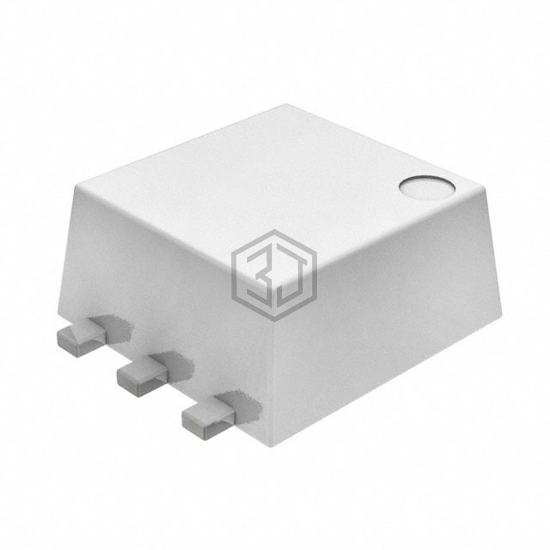

FDJ129P is a Transistors - FETs, MOSFETs - Single manufactured by Fairchild Semiconductor. MOSFET P-CH 20V 4.2A SC75-6 FLMP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-75-6 FLMP.
In Stock: 243,626
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 4.2A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 70mOhm @ 4.2A, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 6 nC @ 4.5 V |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 780 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.6W (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC75-6 FLMP |
| Package / Case | SC-75-6 FLMP |
Submit your RFQ for FDJ129P and get a quote within 24 hours.
