2A, 30V, N-CHANNEL, MOSFET

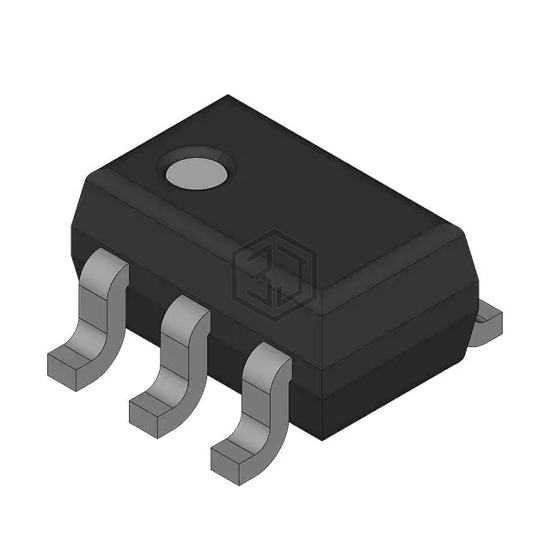

FDG315N is a Transistors - FETs, MOSFETs - Single manufactured by Fairchild Semiconductor. 2A, 30V, N-CHANNEL, MOSFET. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 6-TSSOP, SC-88, SOT-363.
In Stock: 20,245
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 2A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 120mOhm @ 2A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 4 nC @ 5 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 220 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 750mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SC-88 (SC-70-6) |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
Submit your RFQ for FDG315N and get a quote within 24 hours.
