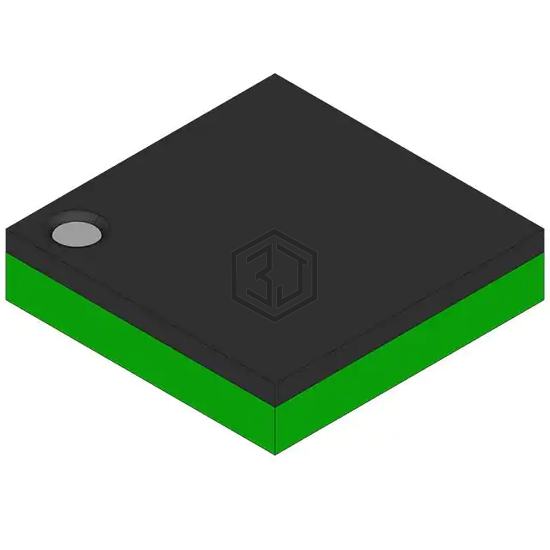

IC LED DRV RGLTR PWM 16WLCSP
FAN5701UC30X is a PMIC - LED Drivers manufactured by Fairchild Semiconductor. IC LED DRV RGLTR PWM 16WLCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-UFBGA, WLCSP, current - output / channel 30mA.
In Stock: 8,790
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | DC DC Regulator |
| Topology | Switched Capacitor (Charge Pump) |
| Internal Switch(s) | Yes |
| Number of Outputs | 6 |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 5.5V |
| Voltage - Output | - |
| Current - Output / Channel | 30mA |
| Frequency | 1.2MHz |
| Dimming | PWM |
| Applications | Backlight |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-UFBGA, WLCSP |
| Supplier Device Package | 16-WLCSP (1.56x1.56) |
FAN5701UC30X is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| FAN5702UC15X | Fairchild Semiconductor | IC LED DRV RGLTR I2C 16WLCSP | 100% | View |
| TPS61150DRCR | Texas Instruments | IC LED DRV RGLTR PWM 35MA 10VSON | 86% | View |
| FAN5340UCX | Fairchild Semiconductor | IC LED DRV RGLTR PWM 40MA 8WLCSP | 79% | View |
| LT1932ES6#TRMPBF | Analog Devices Inc. | IC LED DRVR RGLTR PWM TSOT23-6 | 66% | View |
| AP5724WG-7 | Diodes Incorporated | IC LED DRV RGLTR PWM 750MA SOT26 | 64% | View |
| TPS92360DCKR | Texas Instruments | IC LED DRV RGLTR PWM 1.2A SC70-5 | 64% | View |
Submit your RFQ for FAN5701UC30X and get a quote within 24 hours.
