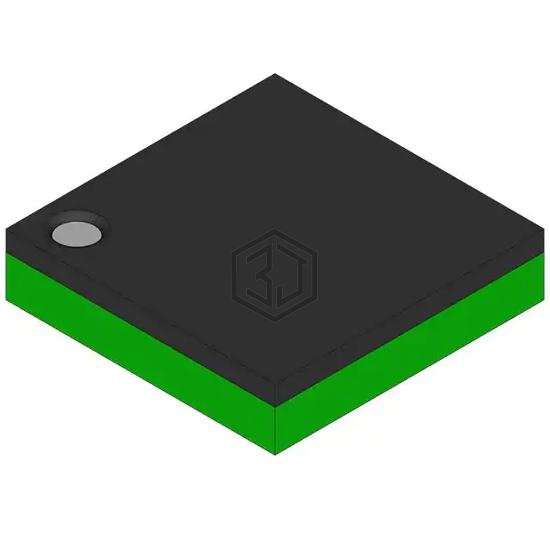

IC LED DRV RGLTR PWM 16WLCSP
FAN5701UC15X is a PMIC - LED Drivers manufactured by Fairchild Semiconductor. IC LED DRV RGLTR PWM 16WLCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-UFBGA, WLCSP, current - output / channel 15mA.
In Stock: 153,335
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | DC DC Regulator |
| Topology | Switched Capacitor (Charge Pump) |
| Internal Switch(s) | Yes |
| Number of Outputs | 6 |
| Voltage - Supply (Min) | 2.7V |
| Voltage - Supply (Max) | 5.5V |
| Voltage - Output | - |
| Current - Output / Channel | 15mA |
| Frequency | 1.2MHz |
| Dimming | PWM |
| Applications | Backlight |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-UFBGA, WLCSP |
| Supplier Device Package | 16-WLCSP (1.56x1.56) |
FAN5701UC15X is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LV52207XA-VH | onsemi | IC LED DRV RGLTR PWM 20MA 9WLCSP | 85% | View |
| TPS61162AYFFR | Texas Instruments | IC LED DRV RGLTR PWM 30MA 9DSBGA | 75% | View |
| TPS61177ARGRR | Texas Instruments | IC LED DRV RGLTR PWM 30MA 20VQFN | 73% | View |
| FAN5340UCX | Fairchild Semiconductor | IC LED DRV RGLTR PWM 40MA 8WLCSP | 65% | View |
| CAT32TDI-GT3 | onsemi | IC LED DRVR RGLTR PWM TSOT23-6 | 62% | View |
| TPS61165DBVT | Texas Instruments | IC LED DRV RGLTR PWM SOT23-6 | 53% | View |
Submit your RFQ for FAN5701UC15X and get a quote within 24 hours.
