SWITCHED CAPACITOR REGULATOR

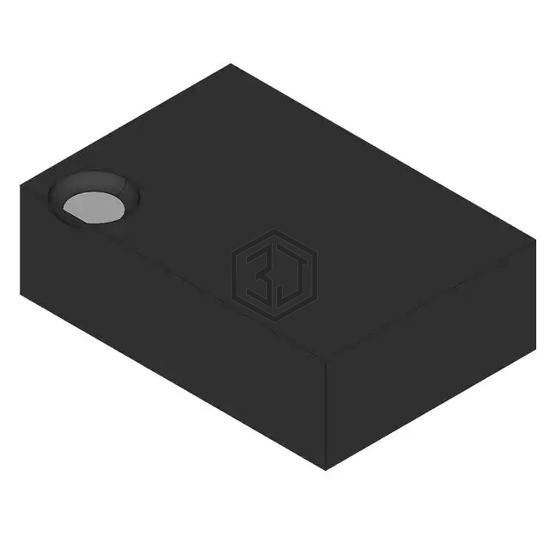

FAN5601MP13X is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Fairchild Semiconductor. SWITCHED CAPACITOR REGULATOR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 6-WDFN Exposed Pad, current - output 250mA.
In Stock: 20,674
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Charge Pump |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 2.2V |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.3V |
| Voltage - Output (Max) | - |
| Current - Output | 250mA |
| Frequency - Switching | 2MHz |
| Synchronous Rectifier | No |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 6-WDFN Exposed Pad |
| Supplier Device Package | 6-MLP (3x3) |
FAN5601MP13X is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TPS62235DRYT | Texas Instruments | IC REG BUCK 1.2V 500MA 6SON | 85% | View |
| LM3671TL-1.2/NOPB | Texas Instruments | IC REG BUCK 1.2V 600MA 5DSBGA | 82% | View |
| LM3671TL-1.5/NOPB | Texas Instruments | IC REG BUCK 1.5V 600MA 5DSBGA | 80% | View |
| LTC3310SIV-1#TRMPBF | Analog Devices Inc. | 10A LOW VLTG SYNCH STEP-DWN SILN | 79% | View |
| LM3671LC-1.6/NOPB | Texas Instruments | IC REG BUCK 1.6V 600MA 6USON | 78% | View |
| TPS62237DRYR | Texas Instruments | IC REG BUCK 3.3V 500MA 6SON | 69% | View |
Submit your RFQ for FAN5601MP13X and get a quote within 24 hours.
