IC OFFLINE SWITCH FLYBACK 10MLP

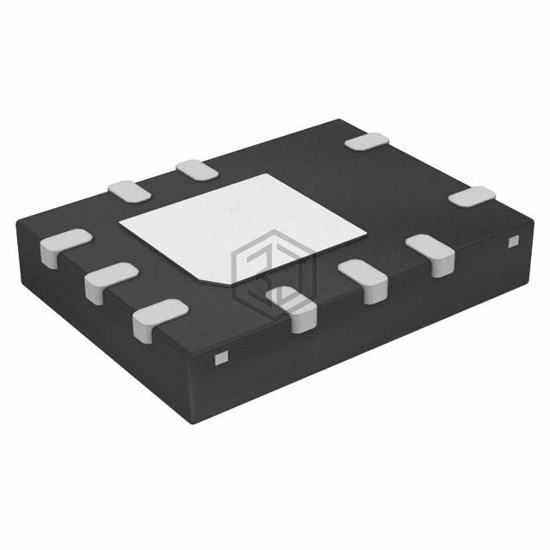

FAN501AMPX is a PMIC - AC DC Converters, Offline Switchers manufactured by Fairchild Semiconductor. IC OFFLINE SWITCH FLYBACK 10MLP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply (vcc/vdd) 6V ~ 30V, package / case 10-WQFN Exposed Pad.
In Stock: 42,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Isolation | Isolated |
| Internal Switch(s) | No |
| Voltage - Breakdown | - |
| Topology | Flyback |
| Voltage - Start Up | 17.5 V |
| Voltage - Supply (Vcc/Vdd) | 6V ~ 30V |
| Duty Cycle | 68.5% |
| Frequency - Switching | 85kHz ~ 140kHz |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Over Temperature, Over Voltage |
| Control Features | - |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Package / Case | 10-WQFN Exposed Pad |
| Supplier Device Package | 10-MLP (4x3) |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LYT2005E | Power Integrations | IC OFFLINE SWITCH FLYBACK 8SO | 100% | View |
| LYT2002D-TL | Power Integrations | IC OFFLINE SWITCH FLYBACK 8SO | 100% | View |
| LYT2004K-TL | Power Integrations | IC OFFLINE SWITCH FLYBACK 12ESOP | 100% | View |
| LNK563DG-TL | Power Integrations | IC OFFLINE SWITCH FLYBACK 8SO | 98% | View |
| MPX2001GY-Z | Monolithic Power Systems Inc. | IC OFFLINE SWITCH FLYBACK 20SOIC | 93% | View |
| MPX2001GY | Monolithic Power Systems Inc. | ALL-IN-ONE FLYBACK CONTROLLER WI | 93% | View |
Submit your RFQ for FAN501AMPX and get a quote within 24 hours.
