FULL BRIDGE BASED PERIPHERAL DRI

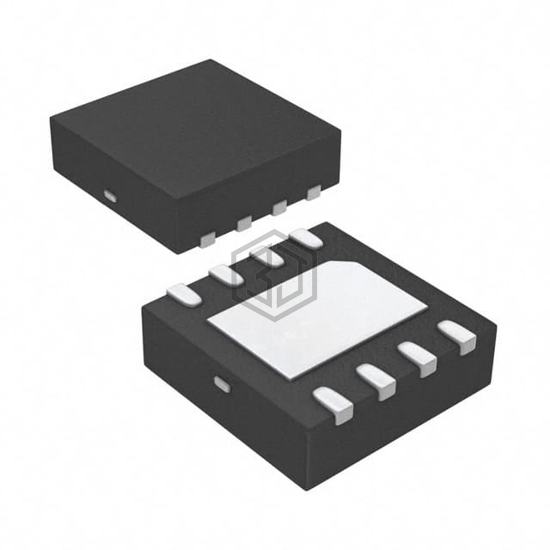

FAN3225CMPX is a PMIC - Gate Drivers manufactured by Fairchild Semiconductor. FULL BRIDGE BASED PERIPHERAL DRI. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - supply 4.5V ~ 18V, package / case 8-WDFN Exposed Pad.
In Stock: 20,343
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Low-Side |
| Channel Type | Independent |
| Number of Drivers | 2 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 5A, 5A |
| Input Type | Inverting, Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 12ns, 9ns |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-MLP (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NCP81071BZR2G | onsemi | IC GATE DRVR LOW-SIDE 8MSOP | 94% | View |
| UCC27525DR | Texas Instruments | IC GATE DRVR LOW-SIDE 8SOIC | 92% | View |
| UCC27524DSDR | Texas Instruments | IC GATE DRVR LOW-SIDE 8SON | 92% | View |
| UCC27525DGNR | Texas Instruments | IC GATE DRVR LOW-SIDE 8MSOP | 92% | View |
| UCC27526DSDR | Texas Instruments | IC GATE DRVR LOW-SIDE 8SON | 92% | View |
| UCC27523DSDT | Texas Instruments | IC GATE DRVR LOW-SIDE 8SON | 92% | View |
Submit your RFQ for FAN3225CMPX and get a quote within 24 hours.
