BUFFER/INVERTER BASED PERIPHERAL

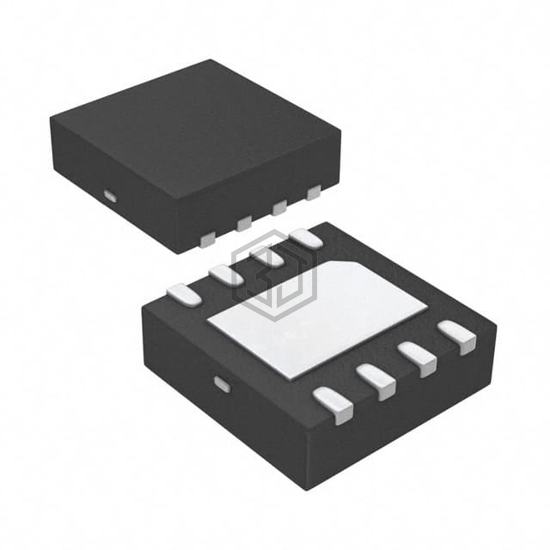

FAN3121CMPX is a PMIC - Gate Drivers manufactured by Fairchild Semiconductor. BUFFER/INVERTER BASED PERIPHERAL. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), voltage - supply 4.5V ~ 18V, package / case 8-WDFN Exposed Pad.
In Stock: 21,192
| Attribute | Value |
|---|---|
| Product Status | Active |
| Driven Configuration | Low-Side |
| Channel Type | Single |
| Number of Drivers | 1 |
| Gate Type | N-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | - |
| Current - Peak Output (Source, Sink) | 10.6A, 11.4A |
| Input Type | Inverting |
| High Side Voltage - Max (Bootstrap) | - |
| Rise / Fall Time (Typ) | 23ns, 19ns |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-WDFN Exposed Pad |
| Supplier Device Package | 8-MLP (3x3) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| FAN3122CMPX | onsemi | IC GATE DRVR LOW-SIDE 8MLP | 100% | View |
| FAN3121CMX-F085 | Fairchild Semiconductor | BUFFER/INVERTER BASED PERIPHERAL | 100% | View |
| FAN3121TMPX | onsemi | IC GATE DRVR LOW-SIDE 8MLP | 100% | View |
| FAN3122TMPX | onsemi | IC GATE DRVR LOW-SIDE 8MLP | 100% | View |
| FAN3122TM1X-F085 | onsemi | IC GATE DRVR DUAL 4A HI/LO SPEED | 100% | View |
| FAN3122CMX | onsemi | IC GATE DRVR LOW-SIDE 8SOIC | 100% | View |
Submit your RFQ for FAN3121CMPX and get a quote within 24 hours.
