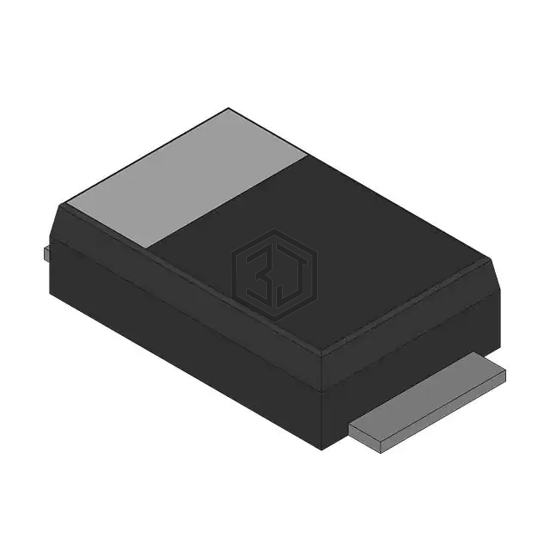

ES1DAF
RECTIFIER DIODE
ES1DAF is a Diodes - Rectifiers - Single manufactured by Fairchild Semiconductor. RECTIFIER DIODE. Key specifications: mounting type Surface Mount, package / case DO-214AD, SMAF.
In Stock: 30,000
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 200 V |
| Current - Average Rectified (Io) | 1A |
| Voltage - Forward (Vf) (Max) @ If | 950 mV @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 34 ns |
| Current - Reverse Leakage @ Vr | 1 µA @ 200 V |
| Capacitance @ Vr, F | 15pF @ 4V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AD, SMAF |
| Supplier Device Package | DO-214AD (SMAF) |
| Operating Temperature - Junction | -55°C ~ 150°C |
Frequently Asked Questions
ES1DAF is a Diodes - Rectifiers - Single manufactured by Fairchild Semiconductor. RECTIFIER DIODE
The mounting type of ES1DAF is Surface Mount.
The package type of ES1DAF is DO-214AD, SMAF.
